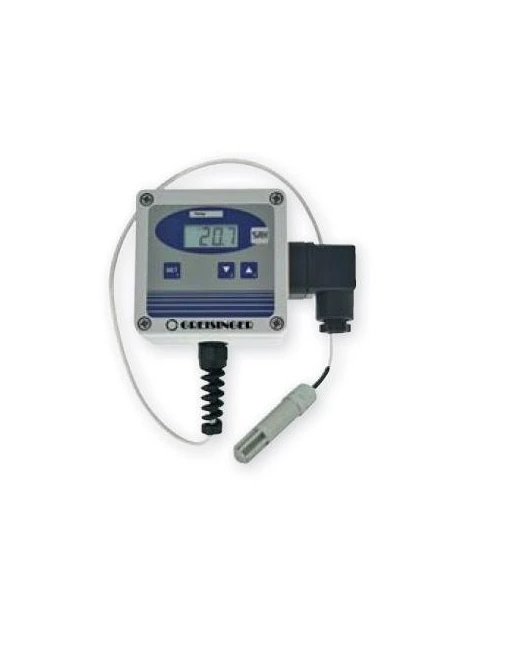

Senseca GHTU-KABEL-MP 습도 및 온도 변환기 (0~100 % RH, 40 ~120 °C, cable and high humidity sensor)

 Measuring ranges:

 Humidity: 0.0 ... 100.0 % RH (temperature compensated)

 Temperature: -40.0 ... +120.0 °C or -40.0 ... +248 °F

Recommended humidity range: 5.0 ... 95.0 % RH 

Display options: with option UNI an alternative display unit can be shown  instead of the humidity measuring value. The unit selection  will be done via keyboard.

Wet bulb temperature: -27.0 ... +60.0 °C

Dewpoint temperature: -40.0 ... +60.0 °C

Enthalpy: -25.0 ... +999.9 kJ/kg

Atmospheric humidity: 0.0 ... 640.0 g/kg

Absolute humidity: 0.0 ... 200.0 g/m³

Accuracy(at 25 °C and in recommended range)

Display:

humidity: ±2.5 % RH

temperature: ±0.4 % of measuring value ±0.2 °C

Output signal:

humidity ±0.2 % FS, 

temperature ±0.2 % FS

Temperature compensation: automatically

Auxiliary energy: 12 ... 30 VDC or 18 ... 30 VDC (for output: 0-10 V)

Reverse voltage protection: 50 V, permanently

Perm. impedance (at 4-20 mA): RA [Ω] ≤ (UV [V] - 12V) / 0.02 A

Permissible load (at 0-1(10)V): RL [Ω] > 3000 Ω

Display: approx. 10 mm high, 4-digit LCD-display, alternating humidity and temperature display

Working temperature: -25 ... +50 °C (electronics)

Sensor head and tube: -40 ... +100 °C - for short time up to 120 °C

Storage temperature: -25 ... +70 °C

Relative humidity (electronic): 0 ... 95 % RH (non condensing); If there is a risk of condensation due to temperature changes, please use our encapsulated or lacquered types (optionally available).

Housing: ABS (IP65)

Sensor tube: tube 14 mm Ø, with screw-type protection cap

Design type Kabel: with separated sensor tube, sensor head (Ø14x 68 mm)  connected to device via 1 m tefl on cable.  Inclusive option high-humidty sensor

Electric connection: elbow-type plug acc. to EN 175301-803/A (IP65)

Mounting: 4 housing holes for wall mounting or by means of plastic tube  clamps for duct mounting

Functions: min-/max-value memory, offset and slope adjustable,  output signal scaleable
