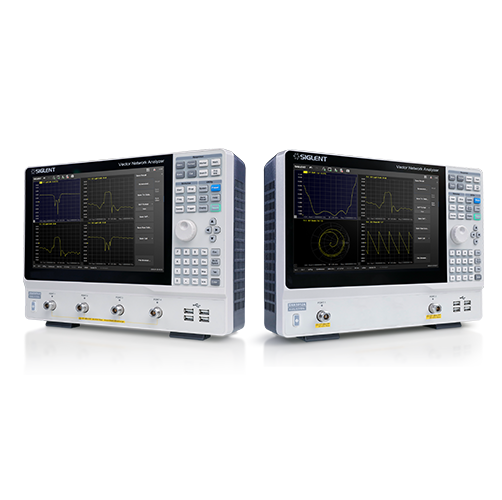

SIGLENT SNA5002A 벡터 네트워크 분석기 (9kHz~4.5GHz; 2 ports)

Frequency range: 9kHz-4.5GHz

Ports: 2

Frequency resolution: 1Hz

Level resolution: 0.05dB

Range of IFBW: 10Hz~3MHz

Setting range of output level: -55dBm~+10dBm

Dynamic range: 125dB

Bias-Tees: Support

Interface: LAN, USB Device, USB Host(USB-GPIB)

Remote control: SCPI/Labview/IVI based on USB-TMC/VXI11/Socket/Telnet/WebServer

Display: 12.1-inch touch screen

Video output: HDMI

Standard accessories

One Quick-start

One Power-cable

One USB-cable

One calibration-certificate

Optional accessories

High-performance reference source: SNA5000-HPR

Time-Domain analysis: SNA5000-TDA

Enhanced Time-Domain analysis: SNA5000-TDR

N-type, Male, 50Ω Calibration Kit, 0-4.5GHz: F503ME

N-type, Female, 50Ω Calibration Kit, 0-4.5GHz: F503FE

3.5mm, Male, 50Ω Calibration Kit, 0-4.5GHz: F603ME

3.5mm, Female, 50Ω Calibration Kit, 0-4.5GHz: F603FE

N-type, Male, 50Ω Calibration Kit, 0-9GHz: F504MS

N-type, Female, 50Ω Calibration Kit, 0-9GHz: F504FS

N-type, Male and Female, 50Ω Calibration Kit, 0-9GHz: F504TS

3.5mm, Male, 50Ω Calibration Kit, 0-9GH: F604MS

3.5mm, Female, 50Ω Calibration Kit, 0-9GHz: F604FS

3.5mm, Male and Female, 50Ω Calibration Kit, 0-9GHz: F604TS
