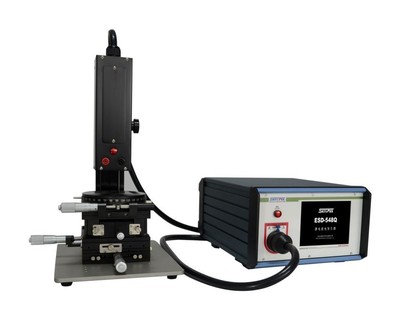

Skylark HBM-8K 반도체 정전기 방전 발생기 (0,1-8kV ± 5% 100-800V ± 5%)
생산업체: Skylark Model: HBM-8K - 연락처
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222)730.39.68
HCM city: (028) 38.119.636
Output voltage Human mode Machine mode:0.1-8kV ± 5% 100-800V ± 5%
Output polarity positive and negative
Trigger mode Single discharge
Count discharge according to the set discharge times
Other hosts automatically trigger this alarm
Discharge mode Human mode or machine mode
Discharge interval 1-99s
Discharge times 1-999
Discharge capacitance 100pF ± 10% 200pF± 10%
Discharge resistance 1500 ω ± 10% 0 ω ± 10%
Discharge waveform conforms to ANSI/ESD STM5.1, ANSI/ESD STM5.2,
EIA/JESD22-A114-B, EIA/JESD22-A115-A standards
Mil-std-883, GJB-128, GJB-548
Ambient temperature: 15°C-35°C Relative humidity 10%-75%
System power supply AC220± 10%, 50/60Hz, about 300W
