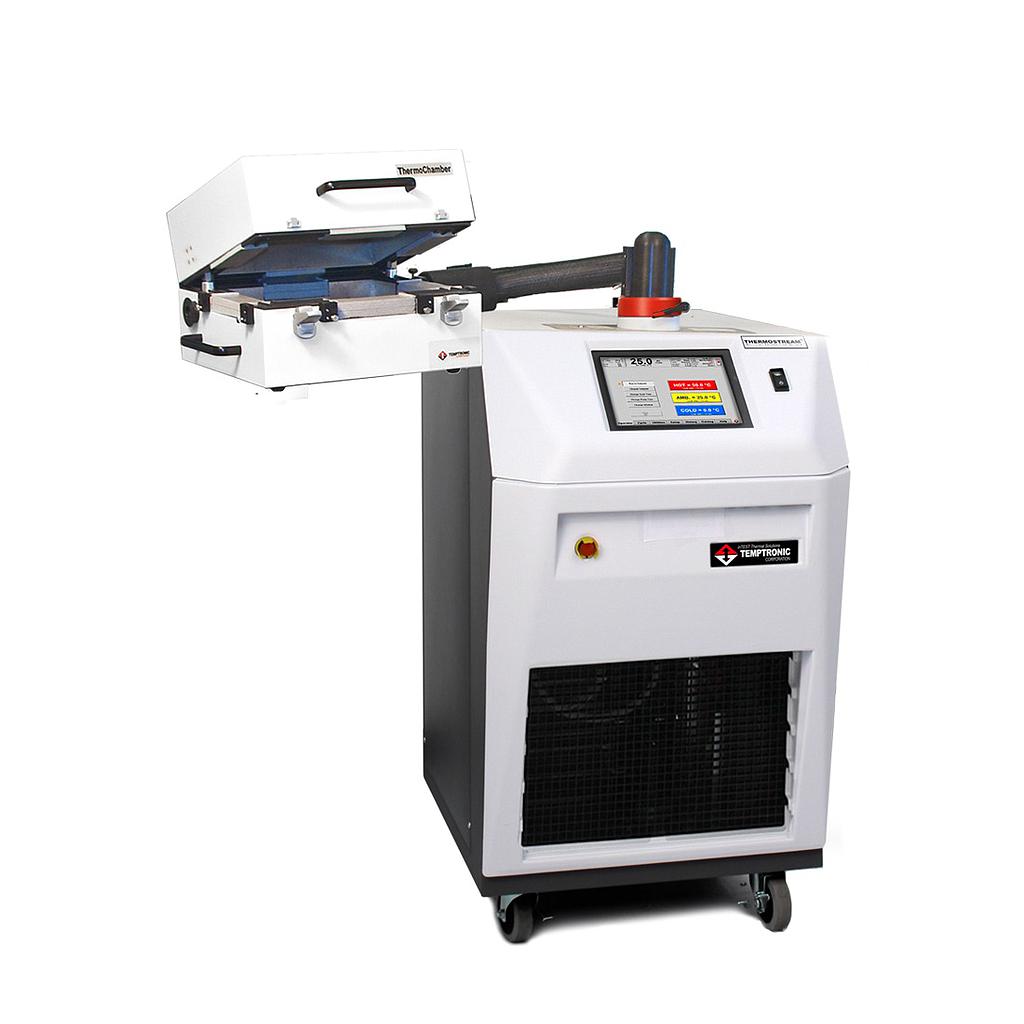

Temptronic ATS-730-T 온도 테스트 시스템 (-90 ~ +225°C)

Description

Advanced Temperature Source for fast and precise thermal conditioning of components, parts, hybrids, modules, subassemblies, and printed circuit boards. Capable of low temperatures without the use of Liquid Nitrogen (LN2) or Liquid Carbon Dioxide (LCO2)

Performance

Temperature Range:

-85 ~ +225°C (50Hz)

-90 ~ +225°C (60Hz) No LN2 or LCO2 Required

Transition Rates

Heating: -55 to +125°C, <10 sec

Cooling: +125 to -55°C, <10 sec

System Airflow Output: 4 to 18scfm (1.9 to 8.5 l/s)  Continuous

Temperature control

Temperature Display & Resolution: +/- 0.1°C

Temperature Accuracy: 1.0°C (when calibrated against NIST standard)

DUT Temperature Control: Proprietary control algorithm enables DUT temperature to be directly controlled

DUT Sensor Ports: Internal diode, Thermocouples (type T & K), RTD (100 Ohm platinum)

Power: 200 - 250 VAC (230V nominal), 50/60Hz, 30 amp, 1phase

Compressed air

Clean, Dry Air (CDA): Filtered to 5 micron particulate contamination.

Oil Content: <0.1 ppm, by weight, filtered to 0.01 micron oil contaminant.

Dewpoint: <10°C @ 6.2 BAR (90PSI)

Air Supply Pressure: 6.2 to 7.6 BAR (90 to 110 PSIG)

Total Air Flow Rate Required: 7.1 to 14.2 l/s (15-30 scfm), 11.8 l/s (25 scfm) nominal

Air Supply Temperature: +20° to +25°C; +22°C nominal

Operating environment

Operating Temperature: +20°C ~ +28°C; +23°C nominal

Humidity: 0 ~ 60%; 45% nominal

Noise Level: <65dBA
