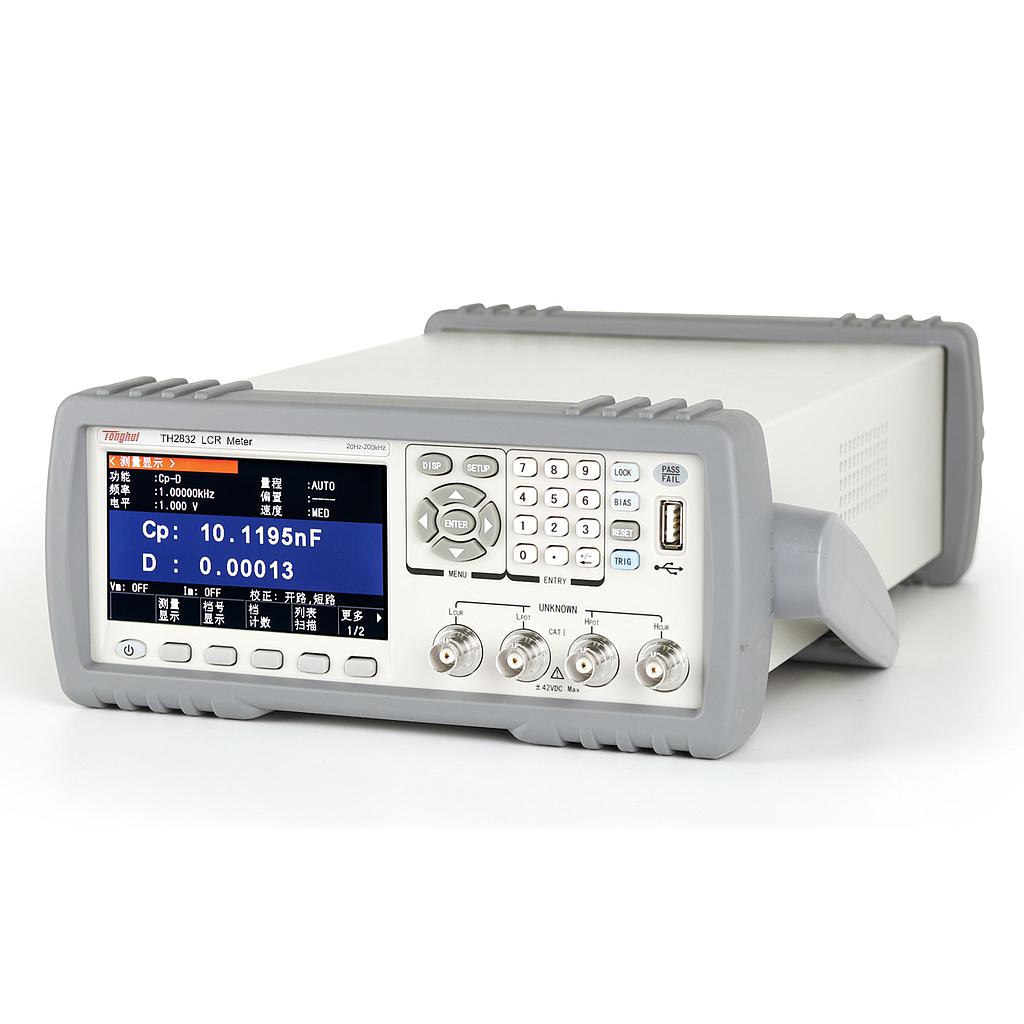

Tonghui TH2832 Compact LCR Meter (20Hz-200kHz)
생산업체: Tonghui Model: TH2832 출처: China 보증: 12 Month - 연락처
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222)730.39.68
HCM city: (028) 38.119.636
Basic Measurement Accuracy:
- LCRZ: 0.05%
- DCR: 0.1%
- Calibration condition: Warm up time: ≥ 30 minutes ; Environment temperature: 23±5ºC
Signal level: 1Vrms ; Corretion: after OPEN, SHORT
Testing cable length: 0 m
Test signal frequency: 20Hz-200kHz, 15025 điểm
Signal source output impedance: Selectable 30Ω, 100Ω, ±1% at1kHz
Test parameters of LCR: |Z|, |Y|, C, L, X, B, R, G, D, Q, θ, DCR
DCR display range: 0.00001 Ω – 99.9999 MΩ
Display range of LCR parameter:
- |Z|, R, X: 0.00001Ω — 99.9999MΩ
- |Y|, G, B: 0.00001μs — 99.9999s
- C: 0.00001pF — 9.99999F
- L: 0.00001μH — 99.9999kH
- D: 0.00001 — 9.99999
- Q: 0.00001 — 99999.9
- θ(DEG): -179.999º — 179.999º
- θ(RAD): -3.14159 — 3.14159
- Δ%: -999.999% — 999.999%
Measurement time (≥10 kHz):
- Fast: 75 meas /sec (13ms)
- Medium: 11 meas /sec (90ms)
- Slow: 2.7 meas /sec (370ms)
Rack mount (mm): 215(W) x 88(H) x 335(D)
Dimension (mm): 235(W) x 105(H) x360(D)
Net weight: 3.6 kg
