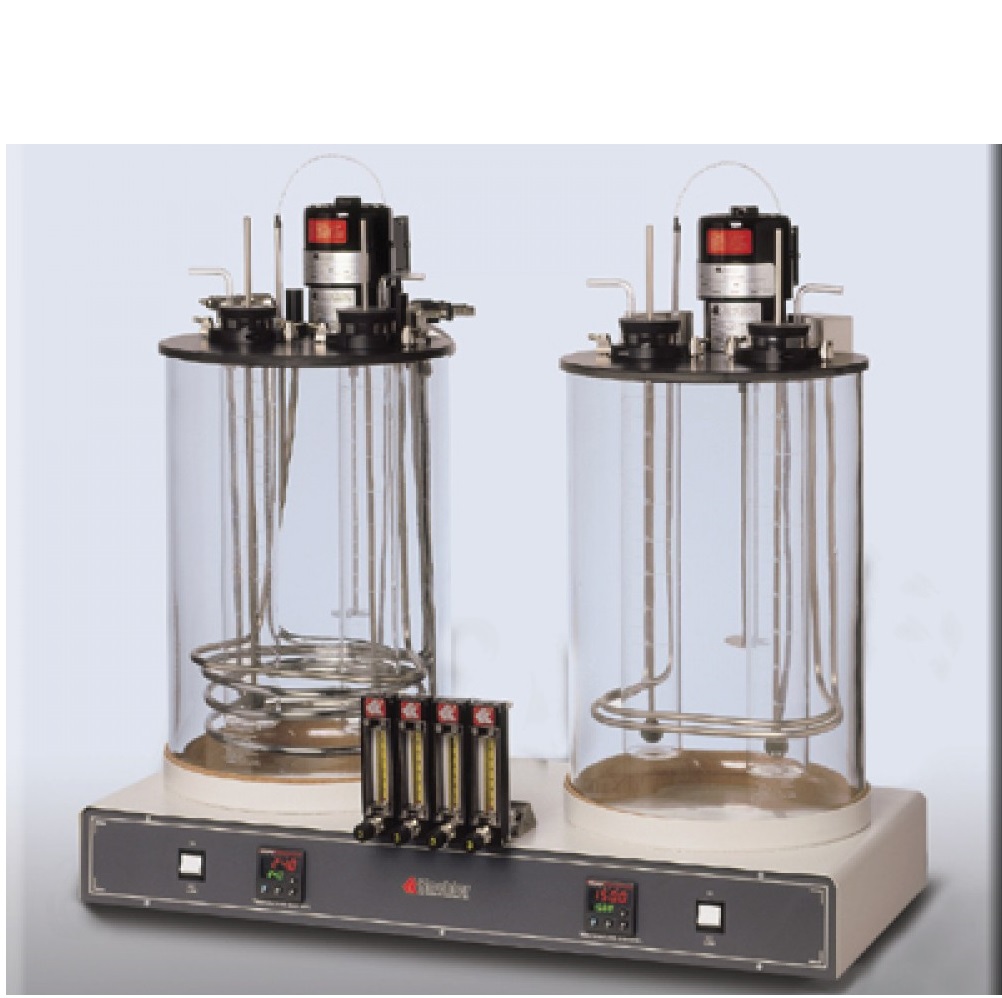

Koehler K43093 Automatic Time Sequence Foaming Characteristics Test Apparatus (38.5L each bath)

Foaming of lubricating oils in applications involving turbulence, high speed gearing or high volume pumping can cause inadequate lubrication, cavitation, overflow and premature oxidation.

Specifications

- Conforms to the specifications of: ASTM D892; IP 146; DIN 51566; FTM 791-3211, 791-3213; NF T 60-129

- Temperature control:

  + Digital setpoint and displays °C/°F switchable

  + Built-in overtemperature cut-off protection

- Bath temperature: 24°C (75°F), 93.5°C (200°F)

- Air flow rate: 94mL/min

- Bath capacity: 9 gal (38.5L) each bath

Dimensions

- lxwxh,in.(cm): 32 1⁄4x15x31 1⁄4 (82x38x79.4)

- Net weight: 108 lbs (49kg)

Shipping information

- Shipping weight: 300 lbs (136.1kg)

- Dimensions: 45x28x56 in. (114.3x71.1x142.2cm)

Included accessories

- Test cylinders, 1000mL (4)

- Diffuser stones, calibrated and certified (4)

- Air delivery tube assemblies (4)

- Air outlet tubes (4)

- Rubber stoppers (4)

- Bath jars (2)

- Support rack (1)

- Acrylic safety shield, 18"
