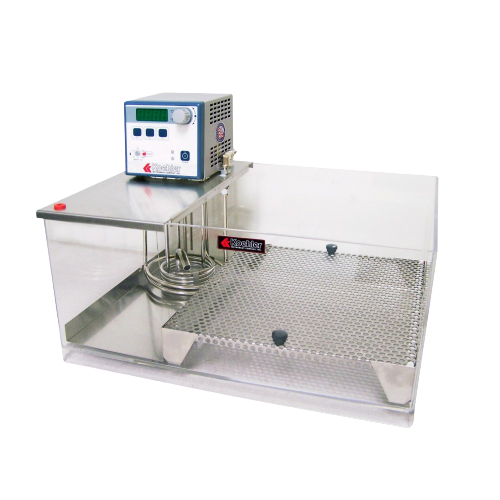

Koehler K95690 Penetrometer Bath (~70°C)

Penetration tests are performed on petroleum products to determine consistency and shear stability (lubricating greases) for design, quality control and identification purposes.

Specifications

- Conforms to the specifications of: ASTM D5, D217, D937, D1321, D1403, D2884, D5329

- Temperature range: Ambient to 70°C

- Temperature stability: 0.05°C (0.1°F)

Electrical requirements: 220-240V 50/60Hz, Single Phase, 4.5A

Dimensions

- lxwxh,in.(cm): 18 x 13 1/2 x 8 1/2 (45.7x33x21.6)

- Net weight: 24 lbs (10.9kg)

Shipping information

- Shipping weight: 32 lbs (14.6kg)

- Dimensions: 28x24x20 in. (71.2x61x50.8cm)

Additional accessories

- 250-000-17F ASTM 17F Thermometer - Range: 66 to 80°F

- 250-000-17C ASTM 17C Thermometer - Range: 19 to 27°C

- 250-000-63F ASTM 63F Thermometer - Range: 18 to 89°F

- 250-000-63C ASTM 63C Thermometer - Range: –8 to +32°C

- 250-000-64F ASTM 64F Thermometer - Range: 77 to 131°F

- 250-000-64C ASTM 64C Thermometer - Range: 25 to 55°C
