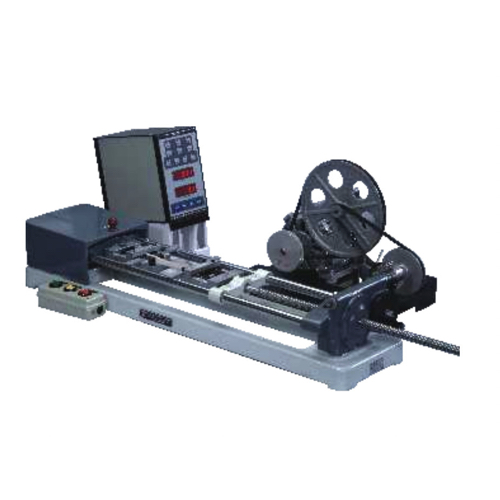

Kudale TM-ER1 Electronic Tensometer (20KN)
Manufacturer: Kudale Model: TM-ER1 - Contact
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222)730.39.68
HCM city: (028) 38.119.636
1. Mechanical frame
Capacity: 20KN max
Dimensions: H230 x W235 x L965mm (approx)
Weight: 18kg (Appprox)
2. Motor drive unit (optional)
Specifications: Motor: 3/4 HP, 230V, single phase, 1440 rpm AC motor
Speed variation: A set of 15 nos. Of pulley. For every speed, pulley to be replaced and stand to be adjusted accordingly ( 0.2-500mm/min)
3. Load measurement: 20KN max with interchangeable load cells
Load cells available: 0.2KN, 2KN, 20KN
Measuring unit: Newton, kg
4. Displacement: optical encoder as sensor
Measurement facility: 0-500mm
5.
Least count & load accuracy: L.C +0.05% of load cell, Accuracy 1%
