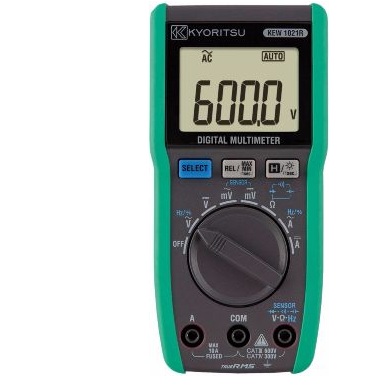

Kyoritsu 1021R Digital Multimeter (6.000/60.00/600.0V)

  • Manufacturer: KYORITSU
    Model: 1021R
    Origin: Thailand
    • Request a Quotation Request a Quotation
  • USD 71.59

  • Quality Engagement
  • Easy change and return
  • Delivery Avaliable
  • Favorable payment

Manufacture: Kyoritsu
Model: 1021R
Made in: Thailand
Warranty: 12 months


DC V: 6.000/60.00/600.0V ±0.5%rd ±3dgt
DC mV: 600.0mV ±1.5%rdg ±3dgt
AC V: 6.000/60.00/600.0V ±1.0%rdg ±3dgt[40 - 500Hz]
AC mV: 600.0mV ±2.0%rdg ±3dgt[40 - 500Hz]
DC A: 6.000/10.00A ±1.5%rdg ±3dgt
AC A: 6.000/10.00A ±1.5%rdg ±3dgt[45 - 500Hz]
Ω: 600.0Ω/6.000/60.00/600.0kΩ/6.000/40.00MΩ, ±0.5%rdg ±4dgt (600Ω), ±0.5%rdg±2dgt (6/60/600kΩ/6MΩ), ±1.5%rdg ±3dgt (40MΩ)
Continuity buzzer: 600Ω (Buzzer sounds below 90Ω)
Diode test: 2.0V Release Voltage: Approx.
Capacitance:60.00/600.0nF/6.000/60.00/600.0/1000µF, ±2.0%rdg ±5dgt (60/600nF), ±5.0%rdg ±5dgt (6/60/600/1000µF)
Frequency: ACV 99.99/999.9Hz/9.999/99.99kHz ±0.1%rdg ±3dgt; ACA 99.99/999.9Hz/9.999kHz |±0.1%rdg|±3dgt
DUTY: 0.0 - 99.9% ±1.0%rdg ±3dgt[50/60Hz]
Applicable standards: IEC 61010-1 CAT IV 300V / CAT III 600V; IEC 61010-2-033, IEC 61010-031, IEC 61326-2-2
Power source: R03 (1.5V) × 2
Dimensions: 155(L) × 75(W) × 35(D)mm
Weight: 250g Approx. (including batteries)
Accessories: Wing-type holder, Flat-type holder, 7066A (Test leads), 8919 (Ceramic fuse [10A/600V]) × 1 (included), 9097 (Carrying case), R03 × 2, Instruction manual
Optional Accessories: 7234 (Alligator clip), 8161 (AC clamp adaptor), 8115 (AC/DC clamp sensor), 9189 (Magnet hanger strap)
