KYORITSU 4102AH Earth Testers | EMIN.ASIA

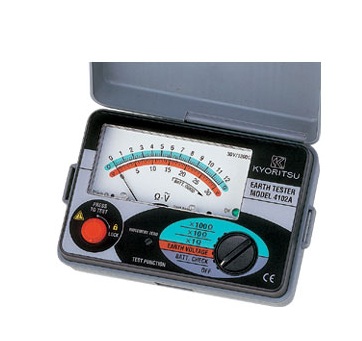

KYORITSU 4102AH Earth Testers

Name: KYORITSU 4102AH Earth Testers
Brand: KYORITSU
Price: 299.48 USD
Availability: InStock

In Stock: 1 Unit

ManufacturerKYORITSU

Model4102AH

OriginThailand

USD 299.48

Quantity

Secure Checkout

Quality Engagement

Easy change and return

Delivery Available

HardCase

The metering:

+Soilresistance: 0~ 12Ω/ 0~ 120Ω/ 0~ 1200Ω

+GroundVoltage[50.60Hz]:0 ~30VAC

+Accuracy:

+Soilresistance:± 3%

+GroundVoltage:± 3%

Source:R6P(AA) (1.5V)× 6

Size:105 (L)×158 (W)×70 (D)mm

Weight:600gapprox.

Accessories:

+7095A(Earthresistancetestleads) ×1SET

(red-20m,10myellow-, green-5m)

+8032(Auxiliaryearthspikes) ×1SET

+7127A(Simplifiedmeasurementprobe) ×1SET

+R6P(AA)× 6

+SoftCase

•	The latest circuit design permits the instrument to operate with the minimum of influence from earth voltage and earth resistance of auxiliary earth spikes.
•	Dust and drip proof. (designed to IEC 529 IP54)
•	Earth resistance value can be read directly from the scale.
•	Designed to meet IEC 61010-1 safety standard.
•	Capable of measuring earth voltage.
•	Small and lightweight. Shock resistant new case material.
•	2mA measuring current permits earth resistance tests without tripping earth leakage current breakers in the circuit under test.
•	Lead wire connection to C and P terminals and proper auxiliary earth resistance can be checked by "OK" lamp. Lead wire connection to C and E terminals is good when "OK" lamp is illuminated.

4102A Soft Case Model

4102A-H Hard Case Model

Measurement
Ranges

Earth Resistance: 0~12 Ω/0~120 Ω/0~1200 Ω
Earth Voltage [50,60Hz]: 0~30V AC

Accuracy

Earth Resistance: ±3% of full scale
Earth Voltage: ±3% of full scale

Overload Protection

Earth Resistance: 276V AC for 10 seconds
across 2 of the 3 terminals
Earth Voltage: 276V AC for 1 minute

Safety Standard

IEC 61010-1 CAT.III 300V Pollution Degree 2, IEC 61557

Applicable Standards

IEC 60529 IP54

Withstand Voltage

3700V AC for 1 minute

Power Source

R6P (AA) (1.5V) × 6

Dimensions

105(L) × 158(W) × 70(D)mm

Weight

600g approx.

Accessories

7095A (Earth resistance test leads) × 1set
(red-20m, yellow-10m, green-5m)
8032 (Auxiliary earth spikes) × 1set
7127A (Simplified measurement probe) × 1set
R6P (AA) × 6
Neck strap
Instruction Manual
