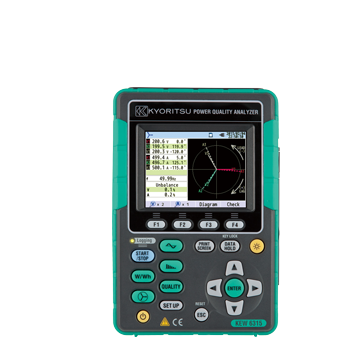

Kyoritsu 6315-00 Power Quality Analyzer (Bluetooth)

Name: Kyoritsu 6315-00 Power Quality Analyzer (Bluetooth)
Brand: KYORITSU
Price: 3520.17 USD
Availability: OutOfStock

ManufacturerKYORITSU

Model6315-00

USD 3,520.17

Quantity

Secure Checkout

Quality Engagement

Easy change and return

Delivery Available

- Wiring connections:1P2W, 1P3W, 3P3W, 3P4W
- Measurements and parameters: V, A, F, P, Q, S, KWh, KVARh, KVAh, PF (cos θ), Neutral current, Demand, Harmonics, Quality (Swell/Dip/Interruption, Transients/Over voltage, Inrush current, Unbalance rate), Capacitance calculation for PF correction unit, Flicker
- Voltage (RMS): 600.0 / 1000V
- Current (RMS)
Option 8128 ( 50A type ): 5 / 50A / AUTO
Option 8127 (100A type ): 10 / 100A / AUTO
Option 8126 ( 200A type ) : 20 / 200A / AUTO
Option 8125 ( 500A type ) : 50 / 500A / AUTO
Option 8124/8130 ( 1000A type ) : 100 / 1000A / AUTO
Option 8146/8147/8148 ( 10A type ) : 1 / 10A / AUTO
Option 8129 (3000Atype ) : 300 / 1000 / 3000A
- Active power: Accuracy 0.3%rdg±0.2%f.s.
- Frequency meter range: 40~70Hz
- Power supply (AC Line) AC100~240V / 50~60Hz / 7VA max
- Power supply (DC battery): Alcaline size AA battery LR6 or Ni-MH (HR-15-51) × 6
- Internal memory: FLASH memory (4MB)
- PC card interface : SD card (2GB)
- PC communication interface:USB Ver2.0, Bluetooth Ver2.1 + EDR Class2
- Display:320 × 240 (RGB) Pixel, 3.5inch color TFT display
- Display update period: 1 sec
- Applicable standards
IEC 61010-1 CAT IV 300V, CAT III 600V, CAT II 1000V Pollution degree 2
IEC 61010-2-030, IEC 61010-031, IEC 61326, EN 50160
IEC 61000-4-30 Class S, IEC 61000-4-15, IEC 61000-4-7
- Dimension: 175(L) × 120(W) × 68(D) mm
- Weight: Approx. 900g
- Included accessories: 7141B (Voltage test lead), 7170 (Power cord), 7219 (USB cable), 8326-02 (SD card 2GB), Carrying case
Input terminal plate × 6, KEW Windows for KEW 6315 (software), Calibration Certificate, Quick manual, Alkaline size AA battery (LR6) × 6

Simultaneous

Simultaneous Power & Power quality measurements
Power/ Harmonics/ Waveform/ Power quality are recorded at all CHs. (Voltage: 3ch, Current 4ch)

•

Helpful support functions
Quick Start Guide, Wiring check and Sensor detection for easy and reliable measurement

•

Measurement with high accuracy
Guaranteed accuracy:	±0.3%rdg (energy), ±0.2%rdg (voltage/ current)
Complies with the International Standard IEC 61000-4-30 Class S and the European Standard EN50160

•

Remote monitoring on PC and Android device
Remote checking of measurement in real-time is possible via Bluetooth communication.
Recorded data can be saved in the supplied SD card.
EN50160 report can be generated after survey by PC software.

•	Various Clamp Current Sensors Various types of clamp and flexible sensors are available: from 1000mA Range up to 3000A Range and Earth leakage measurements

•	Energy consumption check on site Trend and demand graphs for easy recognition. TFT color display with high resolution.

•	IEC 61010-1 CAT IV 300V, CAT III 600V, CAT II 1000V

Free Android software "KEW smart 6315" is available
on "Google Play Store" (*)

Supporting Android ver. 2.2 - 4.4
WVGA (800 × 480) resolution or higher


(*)	Please search "KEW Smart" in Google Play Store. Communication charge may be incurred separately to download application.

Wiring connections

1P2W, 1P3W, 3P3W, 3P4W

Wiring connections

1P2W, 1P3W, 3P3W, 3P4W

Measurements and parameters

Voltage, Current, Frequency, Active power, Reactive power, Apparent power, Active energy, Reactive energy, Apparent energy, Power factor (cos θ), Neutral current, Demand, Harmonics, Quality (Swell/Dip/Interruption, Transients/Over voltage, Inrush current, Unbalance rate),
Capacitance calculation for PF correction unit, Flicker
