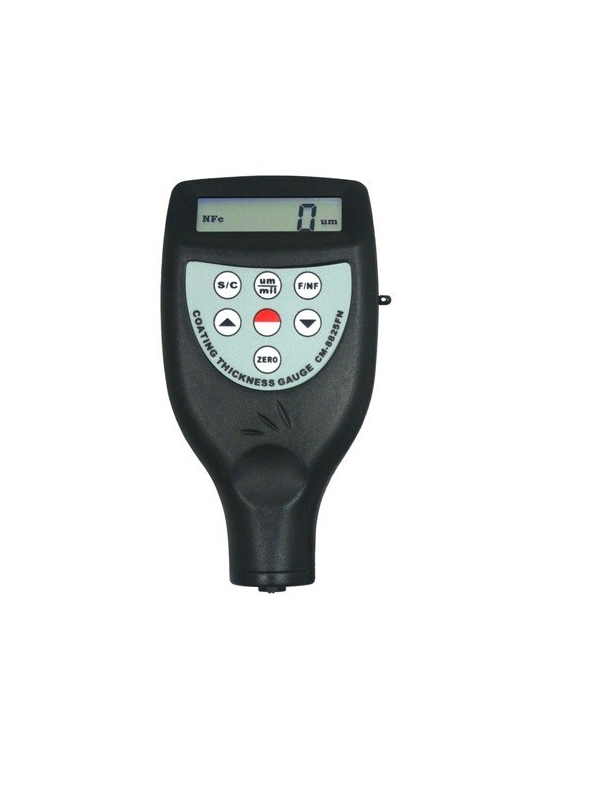

LANDTEK CM-8825FN Coating Thickness Gauge (0–1250 µm / 0–50 mil)

Measurement Method: Magnetic Induction F & Eddy Current NF

Measuring Range: 0–1250 µm / 0–50 mil

Resolution: 0.1 µm / 1 µm

Accuracy: ±1–3% of reading or ±2.5 µm

Minimum Surface Curvature: F: convex 1.5 mm / concave 25 mm; N: convex 3 mm / concave 50 mm

Minimum Measuring Area: 6 mm

Minimum Substrate Thickness: 0.3 mm

Measurement Unit Conversion: Metric / Inch

Features: Automatic power-off / low-pressure warning

Operating Environment:

Temperature: 0–40 ºC

Humidity: 10–90% RH

Power Supply: 4 × AAA batteries

Dimensions: 126 × 65 × 35 mm

Weight: 81 g (without batteries)
