LANGER EMV-Technik H2 set Field Sources
Manufacturer: LANGER EMV-Technik Model: H2 set - Contact
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222)730.39.68
HCM city: (028) 38.119.636

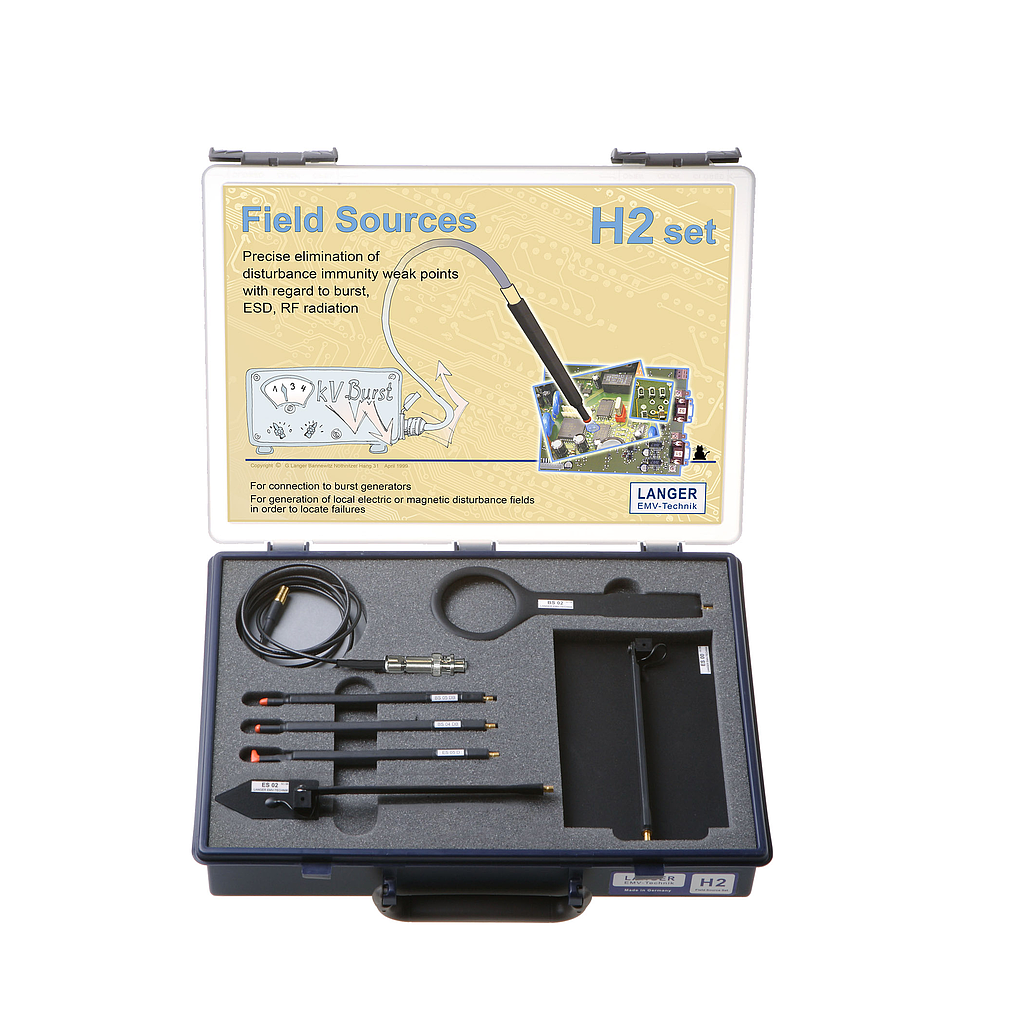

Scope of delivery
1x BS 02-h, Magnetic Field Source
1x BS 04DB-h, Magnetic Field Source
1x BS 05DB-h, Magnetic Field Source
1x ES 00-h, E-Field Source
1x ES 02-h, E-Field Source
1x ES 05D-h, E-Field Source
1x HV SHV-SMB 1 m, High-Voltage Cable, SHV SMB
1x H case, System Case
1x H3 m, H3 Set User Manual
Short description
The included field sources of the H2 set allow for the coupling of puls fields (on basis EN 61000-4-4). The field sources of the H2 set are powered by EFT/burst generator. The maximum supply voltage of the field sources is 4.4 kV. At the high voltage resistant SMB plug connectors of the field source the EFT/burst generator is connected via a high voltage cable (HV SHV SMB 1m). It is produced with a Fischer-Stecker S103A023 and a high voltage resistant SMB special plug of the Langer EMV-Technik GmbH.
Datasheet
Manual
