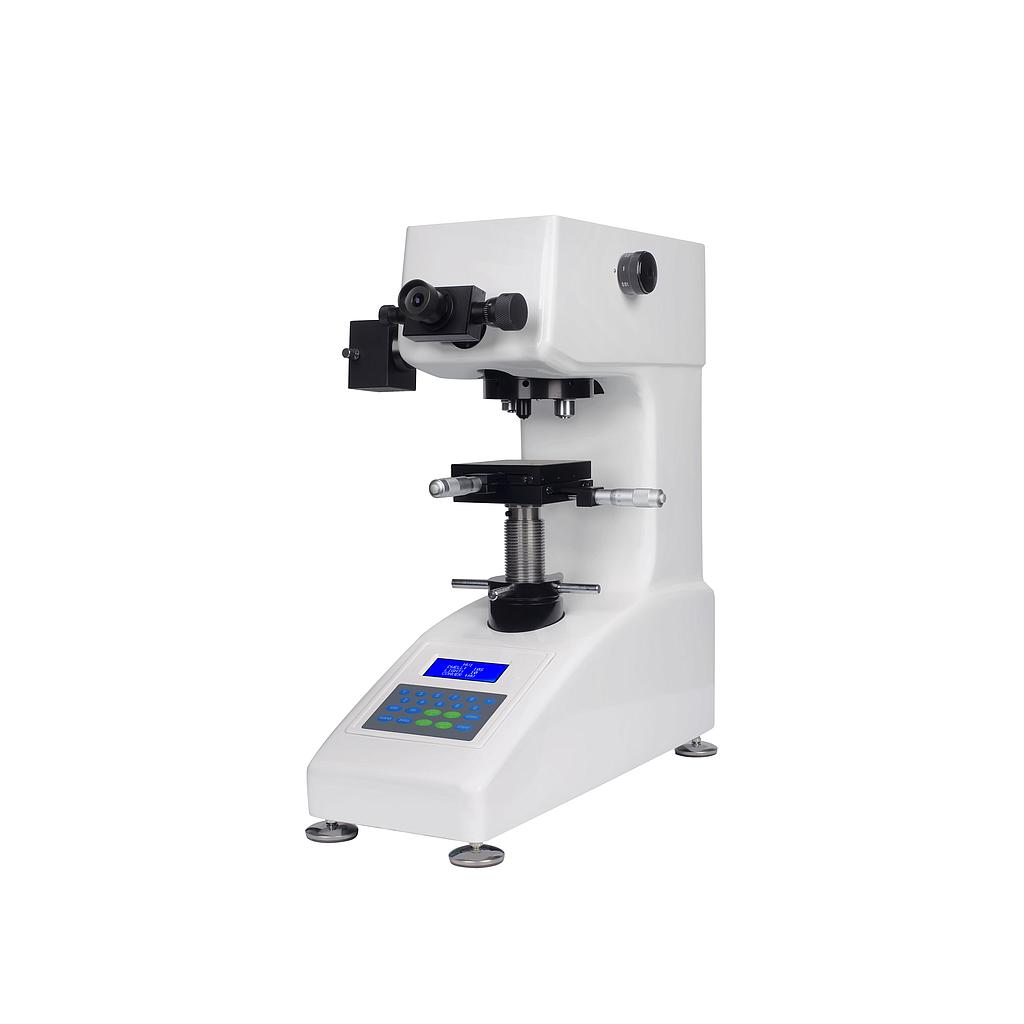

Leeb LHV-1000Z Micro Vickers Hardness tester (8~2900HV)

Test force: 10gf (0.098N)、25gf (0.245N)、50gf (0.49N)、100gf (0.98N)、 200gf (1.96N)、300gf (2.94N)、500gf(4.9N)、1kgf (9.8N)

Min measuring unit: 0.5µm

Data output: LCD screen display

Max Height of Specimen: 80mm

Distance of Indenter to outer wall: 95mm

X-Y Testing table: Dimension: 100*100mm  Max mobile：25*25mm

Conversion Scale: HRA、HRB、HRC、HRD、HRF、HV、HK、HBW、HR15N、HR30N、HR45N、HR15T、HR30T、HR45T

Hardness measuring range: 8~2900HV

method of testing force applied: Automatic（Loading, Dwell, Unloading）

Test microscope magnification: 400X(Measuring)，100X（observation）

Duration time: 0~60s

Power supply: AC220V+5%，50-60Hz

Overall Dimension: 405*290*480mm

Net weight: About 40Kg
