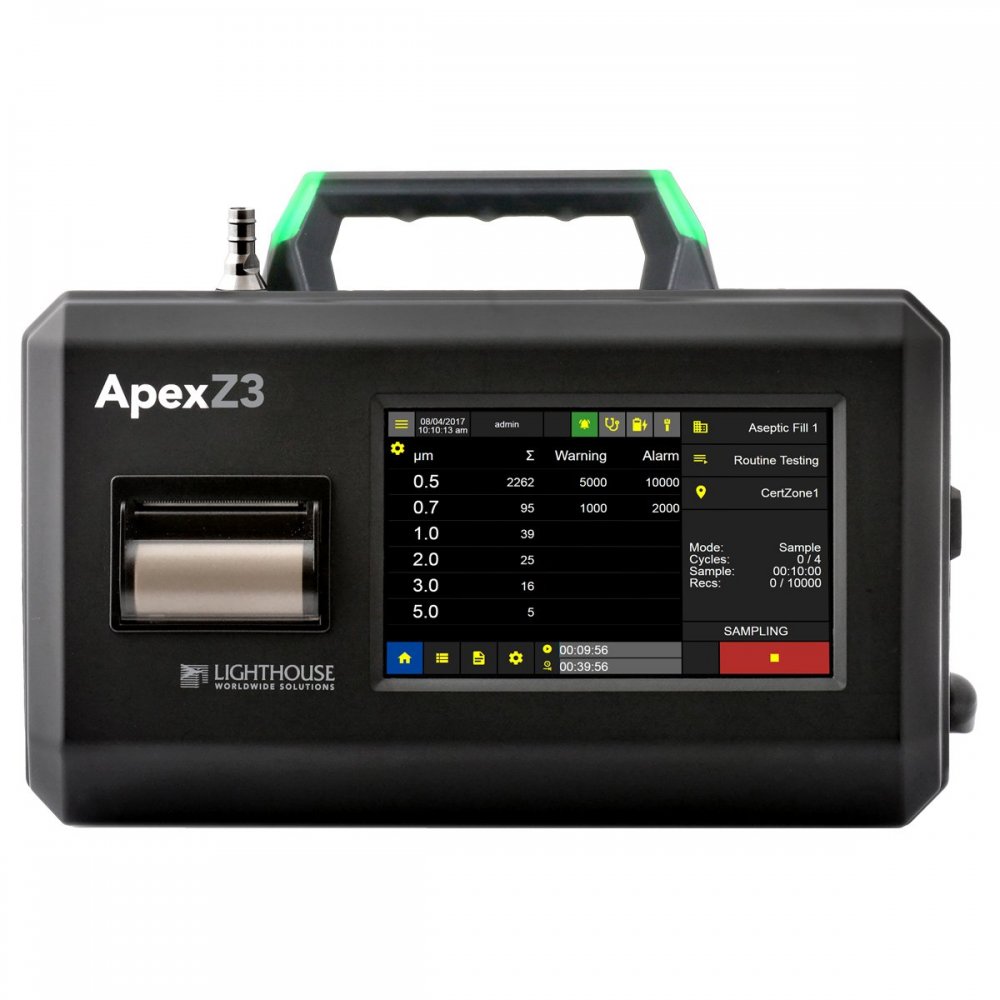

Lighthouse ApexZ3 Airbone Particle Counter (0.3 – 10.0μm, 28.3 LPM)

Minimum Size Detection: 0.3μm

Standard 6 channel sizes: 0.3, 0.5, 1.0, 3.0, 5.0, 10.0 µm

Flow Rate: 1CFM   (28.3 LPM)

Sample inlet: 3/8 Inch Inlet Barb

Coincidence loss: 1,000,000 Particles/ft3@10% (35,300,000/m3)

Touch Screen Display: 7.0 inch (8.89 cm), 1200 x 800 IPS color touch screen

Power: External power supply: 24 VDC, 5 A max draw

Weight: 7.05 lbs (3.19 kg) without batteries, battery weight 1.35 lbs (0.61 kg)

Dimensions: 12.76“ (l) x 6.23” (w) x 8.88” (h)

Communication: Ethernet, USB standard, Wi-Fi (802.11 b/g/n)

Count Modes: Sample, Concentration, Beep, Custom Recipes, and Certification modes

Speakers: 2x adjustable up to 70 dB to indicate status and alerts

Data Storage Records: 10,000 Records, 2500 Locations, 250 Groups, 500 Presets, 500 Sample Plans, 500 Certifications, 100 Reports, 250 Users

Sample Output: Internally filtered to HEPA standards (>99.97% @ 0.3 μm); with rotatable exhaust fitting for directed flow

Languages: English, Spanish, Portuguese, German, French, Italian, Russian, Chinese, Korean, Japanese, Turkish, Thai

Includes: USB flash drive with lanyard, ISO probe 1 CFM (ApexZ3); 100 LPM (ApexZ50), ISP clamp, zero count filter, 24 VDC 5.0 amp power adapter and power cord, 10 feet of Beveline tubing 13/8” ID x 1/2” OD (ApexZ3); 1/2” ID x 5/8” OD BevXX (ApexZ50), 1 li-Ion smart battery included (2 battery slot capacity), 2x rolls of printer paper, Operators Manual on USB flash drive, Calibration Certificate

Optional:

USB Barcode Scanner, Temperature & humidity probe, 1 CFM isokinetic sample probe, USB Wi-Fi Dongle, high-pressure diffuser (ported or vented), li-Ion batteries, Beveline tubing, external battery charger w/AC power cord, printed operators manual, carry case
