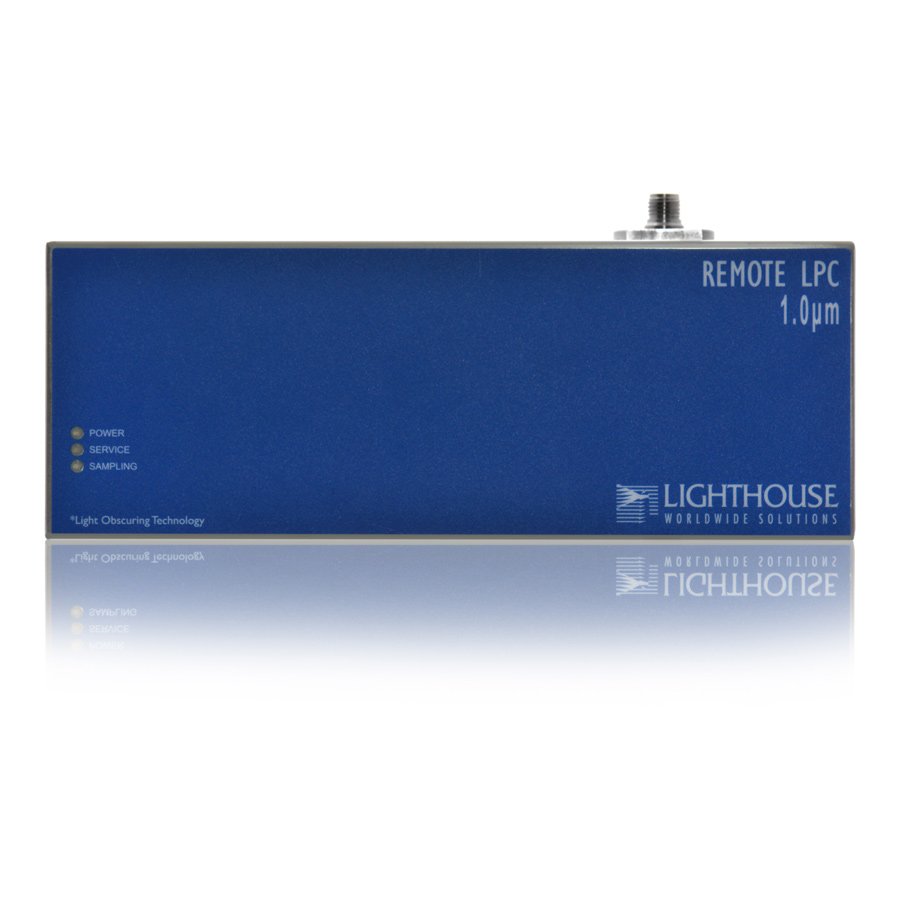

Lighthouse Remote LPC LE Liquid particle counter (1.0-50μm, 50 mL/min)

Minimum Size Detection: 1.0 μm

Channel Sizes: 1.0, 3.0, 5.0, 10.0, 15.0, 20.0, 25.0, 50.0 μm

Flow Rate: 50 mL/minute

Concentration Limit: 40,000 counts/ml @ 5%

Sample Pressure: 150 PSI

Sample Temperature: 32 - 158°F (0 - 70°C)

Sample Inlet/Outlet Connection: 1/4” Compression

Laser Source: Laser Diode

Calibration: NIST Traceable

Wetted Surface Materials: Stainless Steel 316L, Quartz, Kalrez

Data Storage: Rotating buffer 1,000 records

Communication Modes: RS232/485 via RJ45 to PC, RS485 modbus, ASCII, Modbus or MR protocol

LED Indicators: Power, Service, Sampling

Power: 24 VDC @ 150mA

Dimensions: 9.75”(l) x 3.75”(w) x 3.80”(h) [24.7 x 9.0 x 9.6 cm]

Weight: 4.30 lbs (1.95 kg)

Includes: Power supply; 2x 10’ Teflon sample tubing; USB - RJ-45 serial cable, Operating Manual on CD

Optional: Flowmeter, Additional sample tubing, remote mounting plate, stand with flowmeter mounting, RS232 communication kit, RS485 adapter cable
