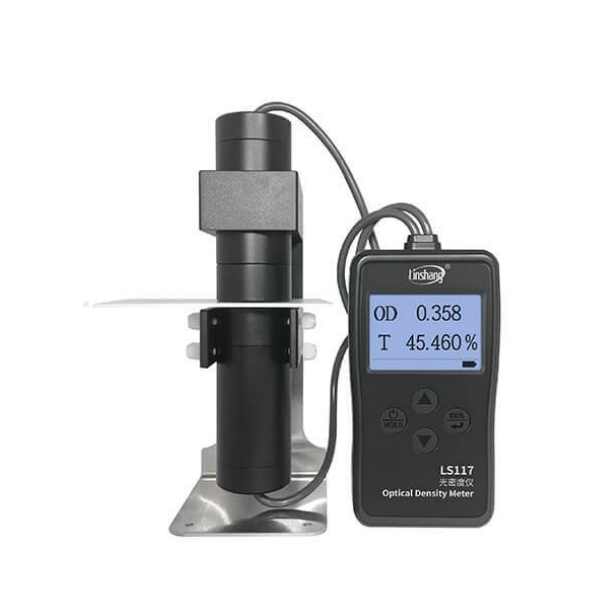

Linshang LS117 Optical Density Meter (0.000OD-6.000OD)

Light transmittance measurement accuracy:

±1% (0%-50%)

±2% (50%-100%)

Light transmittance resolution:

0.0005% (0%-10%)

0.005% (10% -100%)

Optical density measurement range: 0.000OD-6.000OD

Optical density measurement accuracy:

±0.02 (0-2.00OD)

±1% (2.00-4.00OD)

±2% (4.00-6.00OD)

Optical density resolution:

0.001 OD (0.00-2.00OD)

0.01 OD (2.00-4.00OD)

0.1 OD (4.00-6.00OD)

Aperture: 2mm

Light Source: 380nm-760nm, conforming to CIE photopic luminosity function

Weight: About 576g (without battery)

Power supply: 4*AAA alkaline dry battery

Display: 240*160 dot-matrixes LCD

Dimension: 148mm×76mm×26mm (L*W*H)
