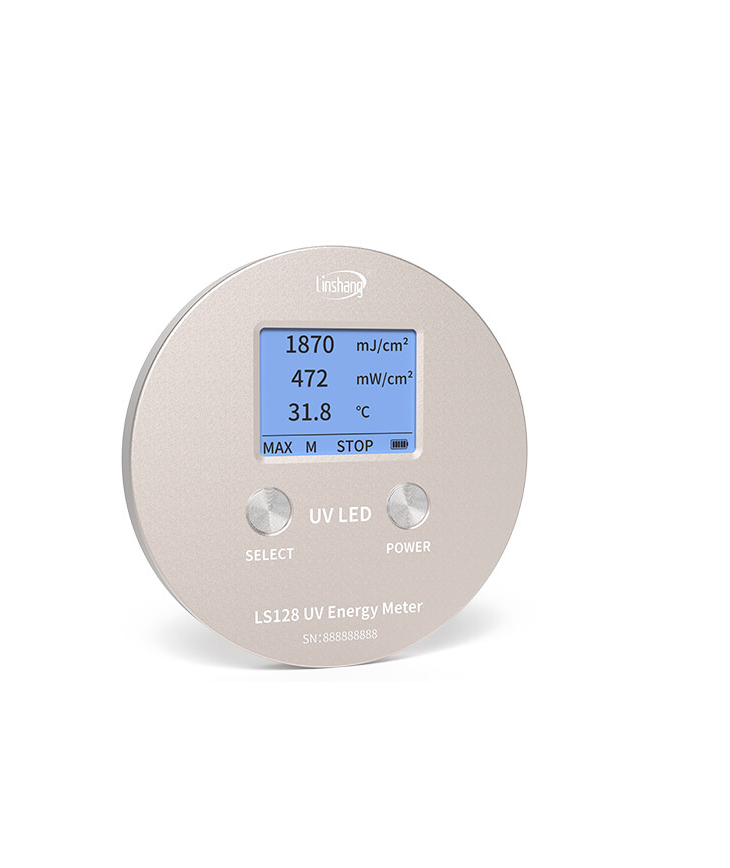

Application: Light intensity, energy and temperature measurement of UV LED light sources
Spectral Range: 340nm - 420nm, calibrated at 395nm UV LED light sources
Irradiance Measuring Range: 0 - 200000 mW/cm²
Irradiance Resolution: 1 mW/cm²
Energy Measuring Range: 0 - 999999 mJ/cm²
Energy Measuring Accuracy (H is the Standard Value)
H<5mW/cm²：±0.5mW/cm²
H>=5mW/cm²：±10%H, ±5% (typical)
Temperature Measuring Range: -55°C -125°C
Sampling Speed: 2048 times/second
Irradiance Data Storage Interval: 32 times/second
Temperature Data Storage Interval: 2 times/second
Recording Period: 32 min
Power Supply: 2 AAA alkaline dry batteries
Display: 240*160 Dot matrix LCD
Test Hole Diameter: Φ10mm
Dimension: Diameter 120mm * Thickness 13mm
Weight: 225g
