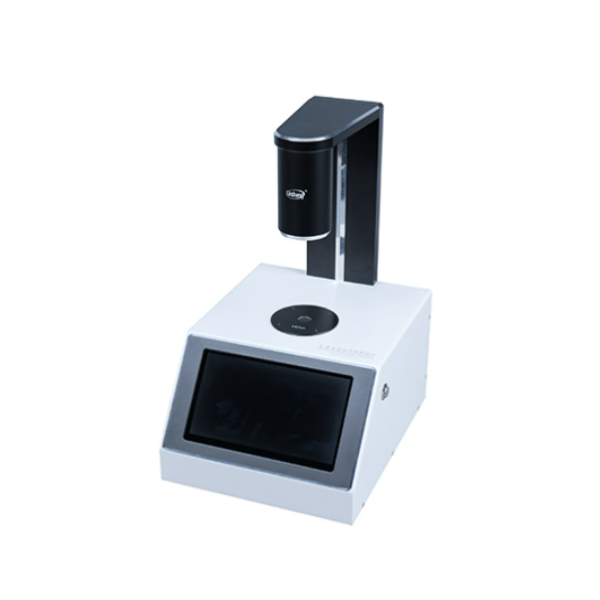

Linshang LS155 Color Haze Meter

Illumination geometry: D/0°

Illumination light source: Full spectrum LED light source

Spectral Range: 400-700nm

Spectral Interval: 10nm

Measuring aperture: 5mm/14mm

Measurement conditions: Light source D65, field of view 10°; Light source A, field of view 2°; Light source C, field of view 2°

Measuring time: About 3s

Measuring parameter: Haze, Transmittance, CIE Lab, LCh, Yxy, Spectral transmittance

Transmittance resolution: 0.01%

Transmittance accuracy: Better than ±1%

Haze resolution: 0.01%

Haze accuracy: Better than ±2%

Color repeatability: Standard deviation ΔE*ab is within 0.03 (Measurement condition: the average value of 30 measurements on the whiteboard at an interval of 3s after calibration)

Power supply: 100~277V 0.4A 50/60HZ

Display: 7-inch 1024*600 dot matrix IPS color screen

Language: Simplified Chinese, English

Data transmission: USB (Type-C)

Operating temperature range: 0-45℃, 0-85%RH (no condensation)

Storage temperature range: 25-55℃, 0-85%RH (no condensation)

Dimension: 211mm×264mm×360mm (LWH)

Weight: 5300g
