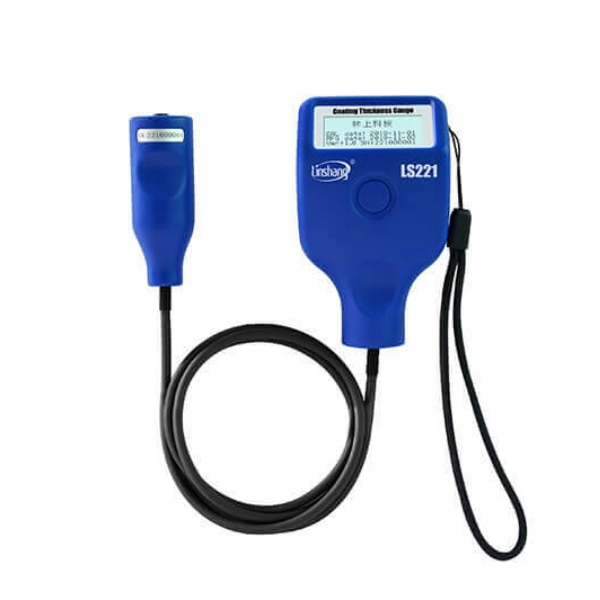

Linshang LS221 Coating Thickness Gauge (0.0-5000μm)

Probe type: Integrated probe

Measuring range: 0.0-5000μm

Resolution:

0.1μm: 0μm - 99.9μm

1μm: 100μm - 999μm

0.01mm: 1.00mm - 5.00mm

Accuracy: ≤±(3%H+2μm), H is the standard value

Unit: μm / mil

Measuring interval: 0.5s

Minimum measuring area: Ø = 25mm

Minimum curvature: Convex:5mm / Concave:25mm

Minimum substrate thickness: Fe:0.2mm / NFe:0.05mm

Display: 128×48 dot matrix LCD

Power supply: 2pcs of 1.5V AAA alkaline battery

Operation temperature range: 0℃-50℃

Storage temperature range: -20℃-60℃

Gauge size: 71*26*22 mm

Weight (with battery): 114 g
