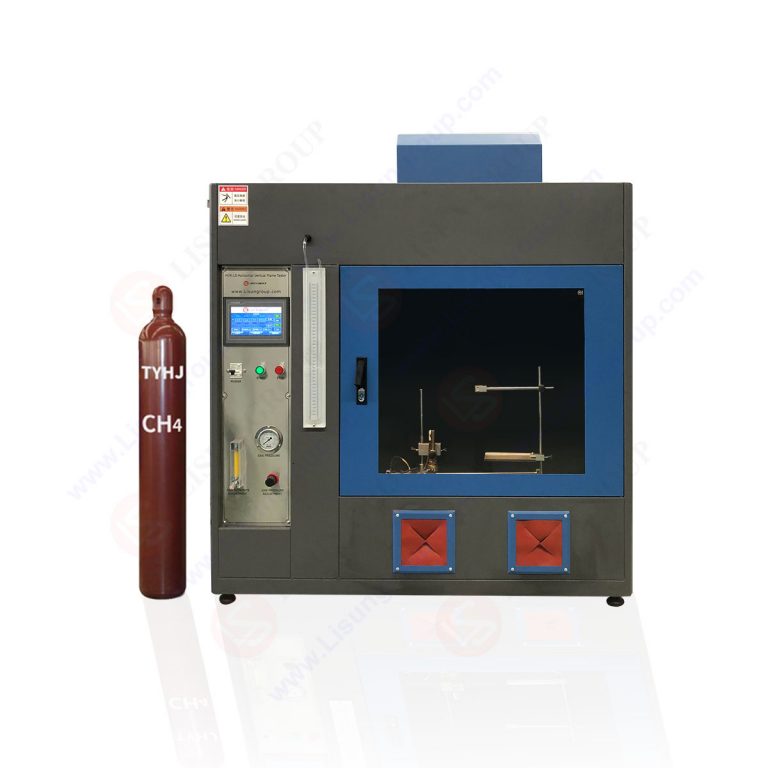

Lisun HVR-LS Horizontal Vertical Flame Tester (0~0.25Mpa)

Name: Lisun HVR-LS Horizontal Vertical Flame Tester (0~0.25Mpa)
Brand: Lisun

ModelHVR-LS

OriginChina

Warranty12 months

Contact

Quantity

Secure Checkout

Quality Engagement

Easy change and return

Delivery Available

• Burning Time: 0~999.9S (Adjustable), Residual flame Time: 0~999.9S (Adjustable), Residual Burning Time: 0~999.9S (Adjustable)

• Burning Angle: 0°, 20°, 45° and optional, Flame Height: 20mm~175mm (Adjustable)

• Gas Flow: 0~1L/Min, Gas Pressure: 0~0.25Mpa

• Bunsen Lamp Holder: Internal tube diameter: 9.5±0.3mm, Length: 100mm±10mm

• Timer: Accurate to 0.1S, linear measure in millisecond

• Pressure Gauge: It can measure 200mm water, taking 5mm as the increment.

• Flow Meter: The maximum measurement accuracy is ±2%

• Position Adjustment: Sample position can be adjusted exactly according to the standard

• Applied with touch screen and remote control

• Customer need to prepare additional ventilation system for HVR-LSS

Datasheet
