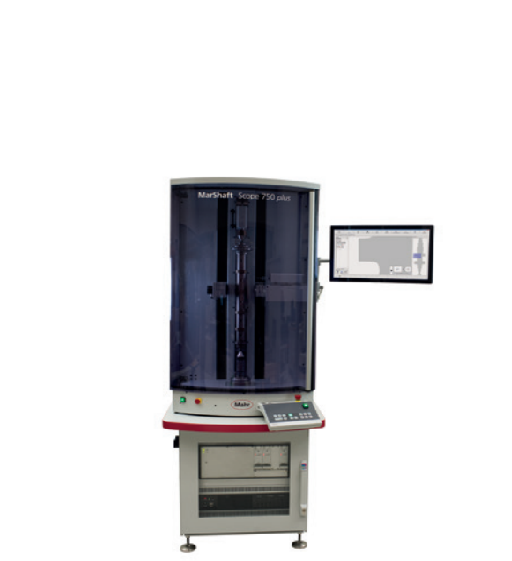

Mahr SCOPE 750 Optical Shaft Measuring System (X:80mm/100mm,Z:750mm)
Manufacturer: Mahr Model: SCOPE 750 Origin: Germany Guarantee: 12 Month - Contact
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222)730.39.68
HCM city: (028) 38.119.636
Measuring range length (Z) (mm):750
Measuring range diameter (X) (mm):80/120
Length/diameter resolution (mm):0.01 to 0.0001
Angle resolution (°): 0.01 to 0.0001
Length error limit (Z) (µm): (2 + L/125) L in mm (at 20°C ± 1°C on reference standard)
Diameter error limit (X) (µm): (1.0 + L/125) L in mm (at 20°C ± 1°C on reference standard)
Lens: Telecentric precision lens
High-resolution CCD array
Drives: Servo motors
Workpiece weight (max.) (kg):15 (optional 30)
