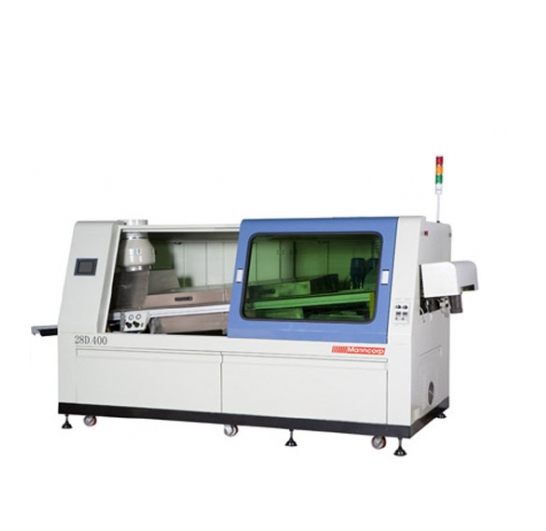

Manufacturer: Manncorp - USA
Model: 28.350
Origin: China
Warranty: 12 months
Wave: Dual Wave
Wave Width: 350 mm (13.8")
Wave Height: 10 mm (0.4")
Preheat Length:1300 mm (51")
Conveyor Width:50 - 350 mm (2" - 13.8")
Maximum PCB Size: 350 mm (13.8") width
Conveyor Speed:0.5 - 2.2 m/min (20" - 87"/min)
Conveyor Angle:4° to 7° (adjustable)
Fluxing: Internal spray fluxer; Dual spray fluxing optional
Solder Pot: Single lead-free pot standard; Two pots—one lead-free, one standard—optional
Solder Capacity: 200 kg (440 lbs. approximate weight for lead free solder)
Solder Temperature: Ambient - 300°C (Ambient - 572°F)
Control Method:Color Touch Screen / PLC
Machine Dimensions: 3500 mm (138") L x 1390 mm (55") W x 1600 mm (63") H
Net Weight: 990 kg (2180 lbs.)
Exhaust Fan Requirements: 250 cfm (Solder Pot Exhaust) 10" Diameter; Spray Fluxer Exhaust Fan built into machine
Air Pressure Requirements: 0.4 MPa (60 psi)
Total Power Consumption: 220 V, 3-Phase, 50/60 Hz 23.7 KW, 70A
