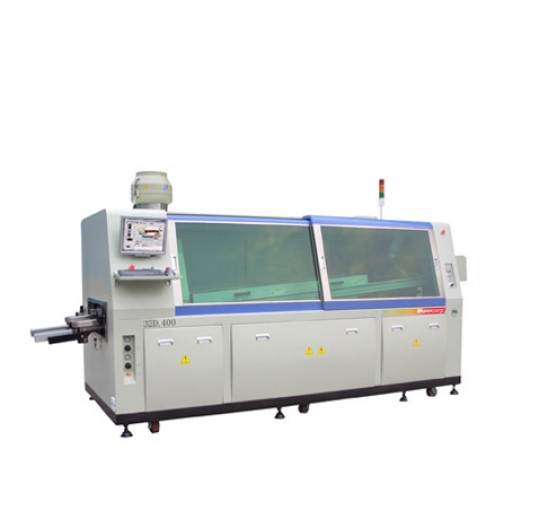

Manncorp 32.400 Wave Soldering Machine

Manufacturer: Manncorp - USA

Model: 32.400

Origin: China

Warranty: 12 months

Wave Width: 410 mm (16")

Wave Height: 10 mm (0.4")

Preheat Length:1800 mm (71")

Conveyor Width:50 - 400 mm (2" - 15.75")(Other widths available: 300 mm (11.75"), 350 mm (13.75") and 450 mm (18"))

Maximum PCB Size: 400 mm x 400 mm (15.75" x 15.75") with standard conveyor

Conveyor Speed:0.5 - 2.2 m/min (20" - 87"/min)

Conveyor Angle:4° to 7° (adjustable)

Solder Capacity: 420 Kg (925 lbs. approximate weight for lead free solder)

Solder Temperature: Ambient - 300°C (Ambient - 572°F)

Control Method:Windows®-Based PC

Machine Dimensions: 3950 mm (138") L x 1450 mm (55") W x 1680 mm (63") H

Net Weight: 1300 Kg (2870 lbs.)

Exhaust Fan Requirements: 250 cfm (Solder Pot Exhaust) 10" Diameter; Additional 4" Exhaust over Conveyor Entrance; Spray Fluxer Exhaust Fan built into machine

Air Pressure Requirements: 0.4 MPa (60 psi)

Normal Operating Power: 8-10 KW

Total Power Consumption: 220 V, 3-Phase, 50/60 Hz 23.7 KW, 39A
