Manufacturer: Manncorp - USA

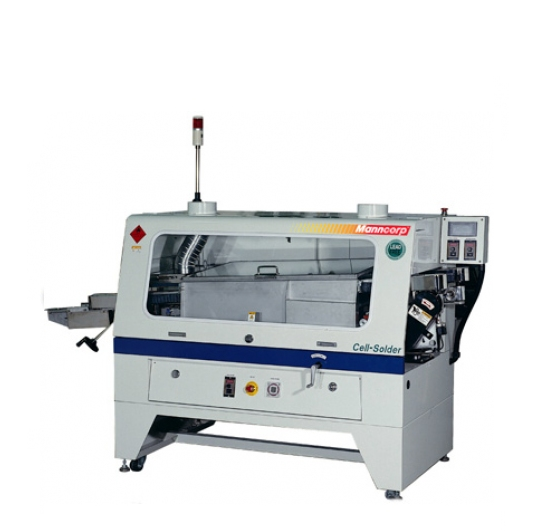

Model: C350
Origin: China
Warranty: 12 months
Maximum Board Width: 350 mm (13.8")
Minimum Board Width: 30 mm (1.2")
Maximum Wave Height: 10 mm (0.4")
Preheat Length:420 mm (16.5")
Conveyor Speed:0 - 2.0 m/min (0" - 79"/min)
Conveyor Angle:3° to 6° (adjustable)
Solder Capacity: 100 Kg (220 lbs. approximate weight for lead free solder)
Solder Temperature: Ambient - 300°C (Ambient - 572°F)
Machine Dimensions: 2020 mm (79.5") L x 830 mm (32.7") W x 1275 mm (50.2") H (Not including warning light.)
Net Weight: Approx. 470 Kg (1040 lbs.)
Air Pressure Requirements: 5 Kg/cm² (70 psi)
Air Volume Requirements: 25 CFM
Total Power Consumption: 220 V, 3-Phase, 50/60 Hz 7.7 KW
