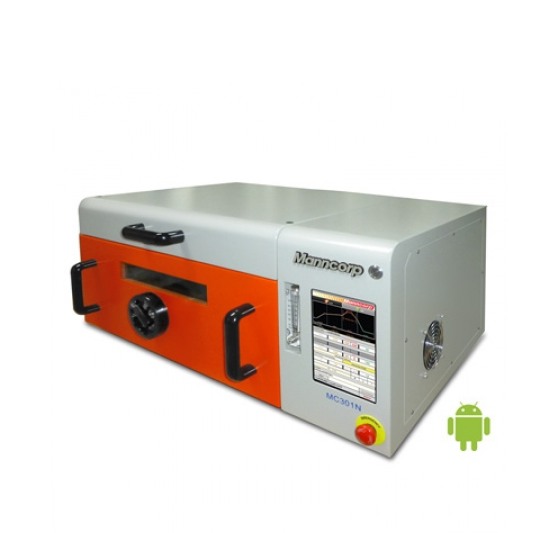

Manncorp MC-301N Benchtop Batch Reflow Oven

Manufacturer: Manncorp - USA

Model: MC-301N

Origin: China

Warranty: 12 months


Applicable Solder Types: Lead-Free or SnPb

Heating Method: IR & Forced Hot Air Convection

User Interface: Android Software Platform; Ultra High Resolution Touchscreen; Integrated WiFi & Networking

Effective Soldering Area: 9.84” x 7.87” (250 mm x 200 mm)

Heating Chamber Size: 13.78" x 9.84" (350 x 250 mm)

Temperature Range: Ambient - 310°C

Temperature Precision: ±2 °C

Temperature Control Method: PID Control; SSR Contactless Switch Circuit

Warm-up Time: approx. 2.5 min.

Power: 3.6 KW (avg.); 6.3 KW (max.)

Voltage: 220 V, Single Phase, 50/60 Hz

Exhaust Requirement: 6.3 L/Min., .22 CFM

Exhaust Temperature (approx.): 90°C

Dimensions: 27.2" L x 18.9" W x 11" H(690 mm L x 480 mm W x 280 mm H)

Weight: approx. 208 lbs. (95 Kg)
