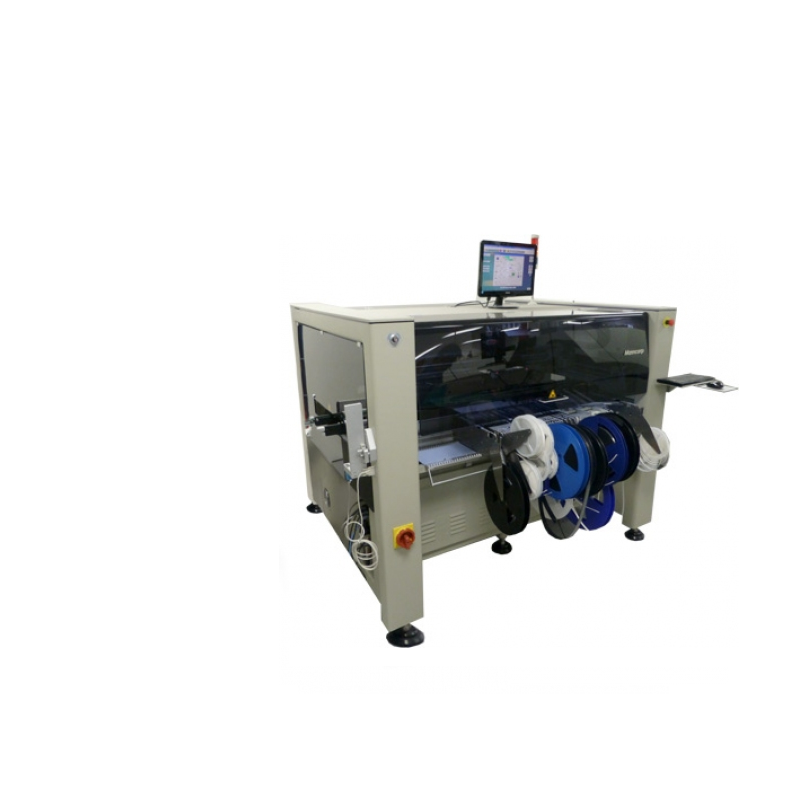

Manufacturer: Manncorp - US
Model: MC-388
Origin: China
Warranty: 12 months
Placement Specifications
Number of Placement Heads:4
Placement Rate (IPC-9850)*:8,000 CPH
Placement Rate (Max.):10,500 CPH
Placement Accuracy:30 µm, 3 Sigma
Minimum Component Size:0201 (01005 optional)
Maximum Component Size:100 mm x 150 mm (3.94" x 5.9")
Minimum Component Lead Pitch:0.3 mm (0.012")
BGA/CSP Placement Capability:Yes - Standard
Alignment Method:Dual-Vision Alignment System
Pick Up Specifications
Tool Changer:Included
Number of Tools:15
Accepts Additional Tool Changers:Yes
Integral Vacuum:Yes
PCB Specifications
PCB Loading Method:3-Stage Inline Single-Lane Conveyor standard. Dual lane, single stage and dual stage available as well as no conveyor (batch / standalone operation)
Max. Placement Area:350 mm x 1250 mm (13.7" x 49.2") w/conveyor; 410 mm x 1100 mm (43.3" x 16") w/o conveyor
Fiducial Recognition/ Coordinate Correction:Yes
Bad Mark Detection:Yes
Feeder Capacity
Maximum Number of Feeder Ports:192 with inline conveyor; 156 with batch configuration with feeders on four sides
Maximum Number of Waffle Trays:Dependant on PCB size
Programming
Operating System:Windows® Based
PC, Keyboard, Mouse:Yes
MonitorFlat LCD
Teaching Camera:Yes
Numeric Data Entry:Yes
CAD Download:Yes
Step and Repeat for Matrix Boards:Yes
Bar Code Reader for Feeders & Packaging:Yes
MIS and Optimization Functions:Yes
Off-Line Programming:Yes
Dispenser Specifications
Dispensing Head:Optional
Dispense Method:Time/Pressure
Dot Size / Placement Speed:Down to 0.5 mm / Up to 6,000 dots./hr
Mechanical Specifications
X-Y Axis Drive Mechanism:Ball Screw
X-Y Axis Drive Motors:AC Servo
X-Y Axis Encoding:Linear
X-Y Axis Resolution:0.005 mm (0.0002")
Z Axis Drive Motor:DC Servo
Z Axis Encoding:Rotary
Z Axis Resolution:0.02 mm (0.0008")
Θ Axis Drive Motor:DC Servo
Θ Axis Encoding:Rotary
Θ Axis Resolution:0.045°
Θ Axis Range of Motion:360°
Physical Specifications
Overall Dimensions(Approx. L x W x H):1780 mm L x 1370 mm W x 1395 mm H (70" x 54" x 55")
Approximate Net Weight:1200 Kg (2646 lbs.)
Facility Requirements
Standard Voltage:220 VAC, 50/60 Hz
Air Pressure:75 psi, 4 CFM
Service and Support
Remote Diagnostics:Ethernet
Warranty (Major Components):1 Year
