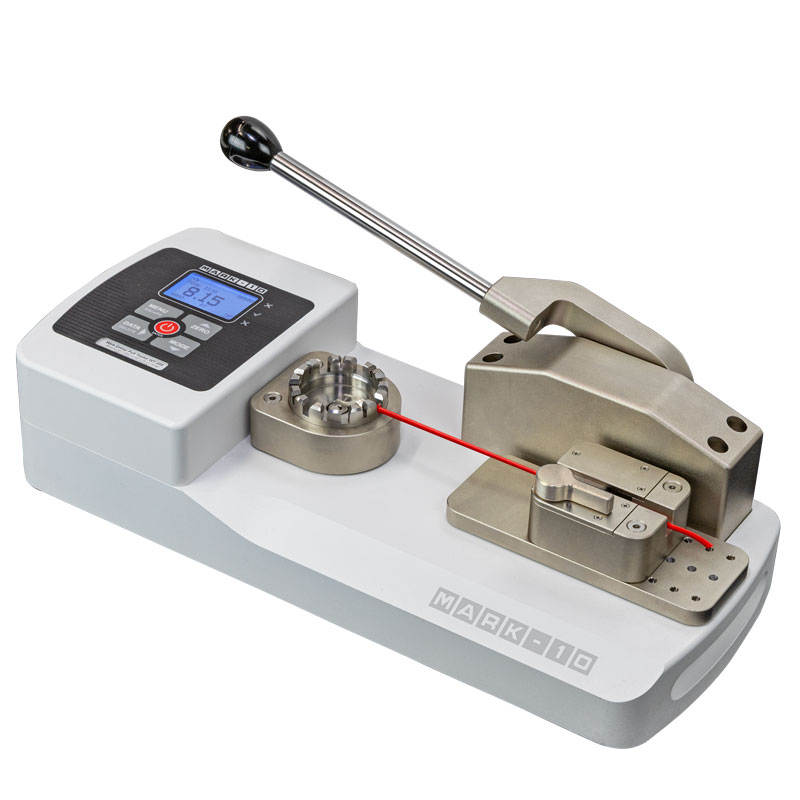

Capacity x Resolution: 200 x 0.1 lbF, 3200 x 2 ozF, 100 x 0.05 kgF, 1000 x 0.5 N, 1 x 0.0005 kN
Accuracy: ±0.2% of full scale
Wire gauge range*:AWG30 - AWG3*
Wire diameter range:0.01 - 0.25 in [0.3 - 6.3 mm]
Minimum sample length:2.1 in [53.3 mm], excluding termination
Maximum sample elongation:1.70 in [43.2 mm]
Power:AC adapter: 100-240VAC, 50-60 Hz, 0.3A, Battery: Rechargeable 8.4V NiMH Low battery indicator appears when battery level is low, and tester powers off automatically when power reaches critical stage.
Battery Life:Backlight on: up to 7 hours of continuous use
Backlight off: up to 24 hours of continuous use
Sampling rate:7,000 Hz
Outputs:USB / RS-232: Configurable up to 115,200 baud. .
Mitutoyo (Digimatic): Serial BCD suitable for all Mitutoyo SPC-compatible Devices.
Analog: ±1 VDC, ±0.25% of full scale at capacity.
Set points: Three open drain lines, 40 VDC max., 100 mA DC max.
Safe overload:150% of full scale (display shows "OVER" at 110% and above)
Weight:16.1 lb [7.3 kg]
