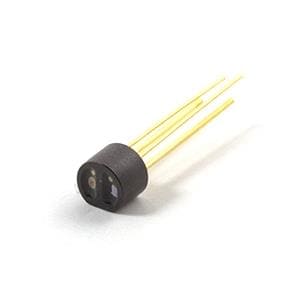

Marktech Optoelectronics MTRS9520 Optical Switches, Reflective, Phototransistor Output Infrared Emitter 950nm
Manufacturer: Marktech Optoelectronics Model: MTRS9520 - Contact
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222)730.39.68
HCM city: (028) 38.119.636
Width: 4 mm
Height: 3 mm
Length: 4 mm
Fall Time: 30 us
Rise Time: 20 us
Wavelength: 950 nm
Output Type: Phototransistor
Mounting Style: Through Hole
Sensing Distance: 0.5 mm to 1.5 mm
Moisture Sensitive: Yes
Number of Channels: 1 Channel
If - Forward Current: 4 mA
Vf - Forward Voltage: 1.1 V
Vr - Reverse Voltage: 5 V
Pd - Power Dissipation: 100 mW
Maximum Collector Current: 50 mA
Maximum Operating Temperature: + 80 C
Minimum Operating Temperature: - 20 C
Collector- Emitter Voltage VCEO Max: 20 V
