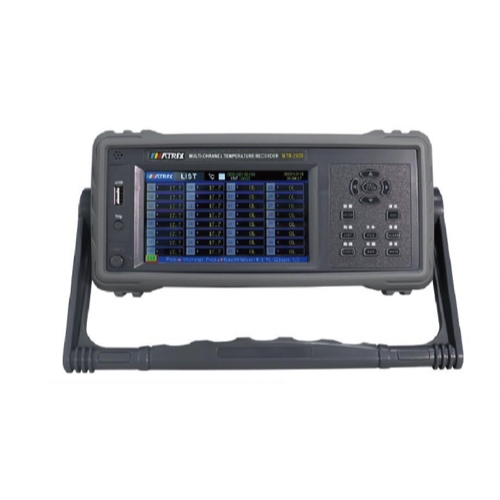

MATRIX MTR-2000 Temperature Recorder (-200°C to 1820°C)

Mode of display: 5" TFT true color LCD industrial touch screen

Form of display: Real-time list, curve (historical curve), bar chart, current alarm (historical alarm), file record list

Query of records: The machine view record curve, historical alarm record, computer software analysis query

Number of channels: Each module supports 8 channels, maximum of 64 channels

Thermoelectric couple: K, J, E, T, N, S, R, B

Basic accuracy: 0.2°C + 2 words (without thermocouple error)

Range of measurement: -200°C to 1820°C (based on the thermocouple indexing range)

Cold end compensation accuracy: ±0.5°C

Resolution correction: 0.1°C, independent error correction per channel, Y = kx + b (x = measured value)

Number of files: 64 (loop records)

File capacity: One file can record 130,000 groups (without distinguishing the number of channels)

USB flash drive interface: Export record file, second change U disk function (instrument acts as U disk), directly view files and software

Recording duration: One-second recording interval can be recorded consecutively for 97 days

Rate of sampling: Fast: 0.1S, Slow: 18S

Isolation between channels: AC/DC up to 350V, high voltage live measurement, super anti-interference ability

Control output: Two sets of independent relay outputs are (H/L) and (HH/LL) relays

Alarm sound: All buzzer sounds (any alarm sounds, can be muted)

Interval of recording: 1 to 9999 seconds, any setting

Communication interface: USB and RS485 ports are standard

Power supply: AC85-265V ±10%, frequency 50Hz/60Hz

Power consumption: <10W

Thermoelectric couple: Each channel is equipped with a 2m K thermocouple

Size: Width 220mm x Depth 293mm x Height (including feet) 106mm (about the size of A4 paper)

Weight: About 3kg (configuration varies)

Environmental conditions: 5~40°C, 20%~80% RH (no condensation)
