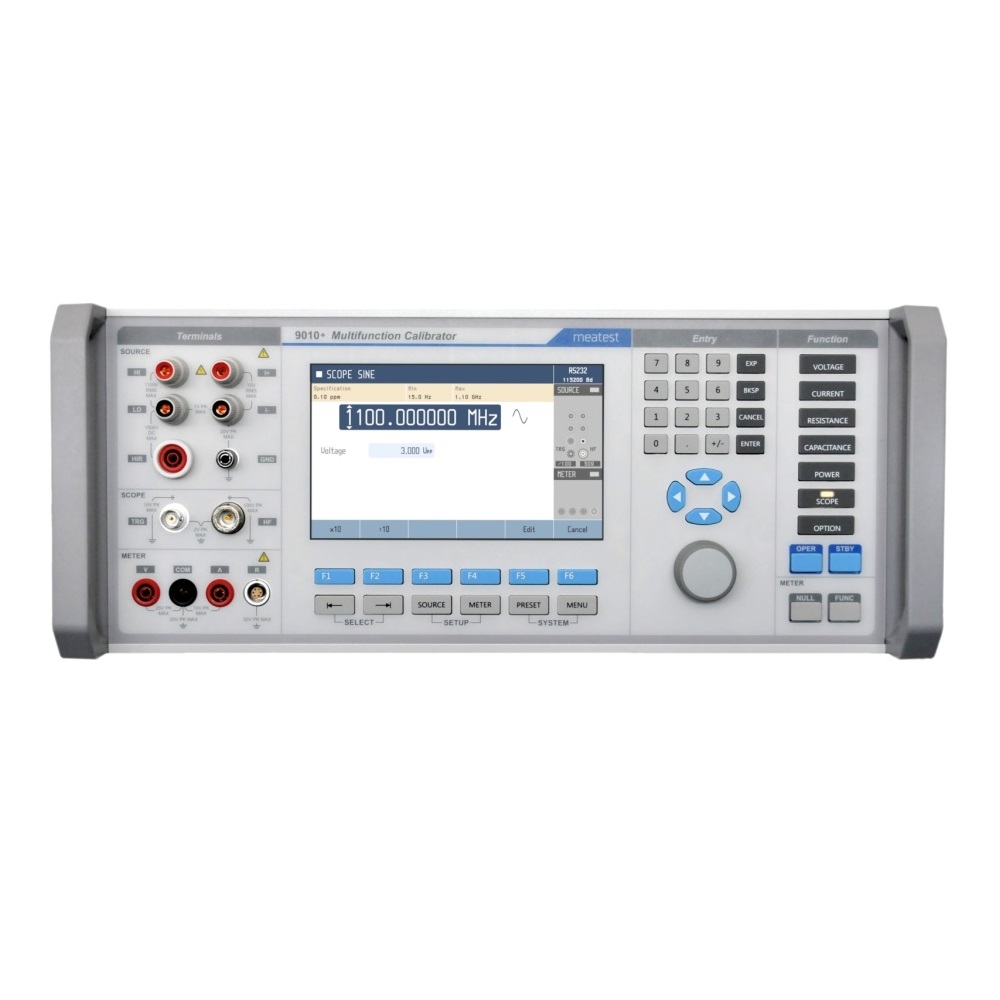

MEATEST 9010+ Multifunction Calibrator (0-1050VDC; 1mV-1050VAC)

DC voltage: 0 - 1050 V

                    ± 10 ppm / year

AC voltage: 1 mV - 1050 V, 15 Hz - 300 kHz

                    sinusoidal & non-sinusoidal waveforms, harmonics

                    ± 160 ppm / year

DC current: 0 - 30 A (1500 A with 140-50 Current Coil)

                   ± 100 ppm / year

AC current: 10 uA - 30 A, 15 Hz - 10 kHz (1500 A with 140-50 Current Coil)

                    sinusoidal & non-sinusoidal waveforms, harmonics

                    ± 400 ppm / year

DC Power & Energy: 40 uW - 30 kW (1575 kW with 140-50 Current Coil)

                                  ± 160 ppm / year

AC Power & Energy: 40 uW - 30 kW, 15 - 1000 Hz (1575 kW with 140-50 Current Coil)

                                  50 harmonic products, voltage from current

                                  ± 670 ppm / year

Resistance: 0 Ω - 1.1 GΩ, resolution 6½ digits

                    ± 15 ppm / year

Insulation Resistance: 100 kΩ - 100 GΩ

                                     rated up to 1.5 kV

Capacitance: 800 pF - 120 mF, resolution 6½ digits

                      ± 0.25 % / year

Temperature: TC B,C,D,E,G2,J,K,M,N,R,S,T with cold junction compensation

                      RTD ± 0.03°C / year

Frequency: 0.1 Hz - 1100 MHz

                   ± 2.5 ppm / year

GENERAL DATA

Warm-up time: 30 minutes

Operating temperature: +13 °C – +33 °C

Storage temperature: -10 °C – +55 °C

Temperature coefficient: 10 % of accuracy / °C outside TREF

Max relative humidity: 70 %

Power supply: 115/230V - 50/60 Hz, 450 VA max

Dimensions (W x H x D): 435 x 175 x 620 mm

Weight: 24 Kg

Interfaces: RS232, IEEE488, USB, Ethernet
