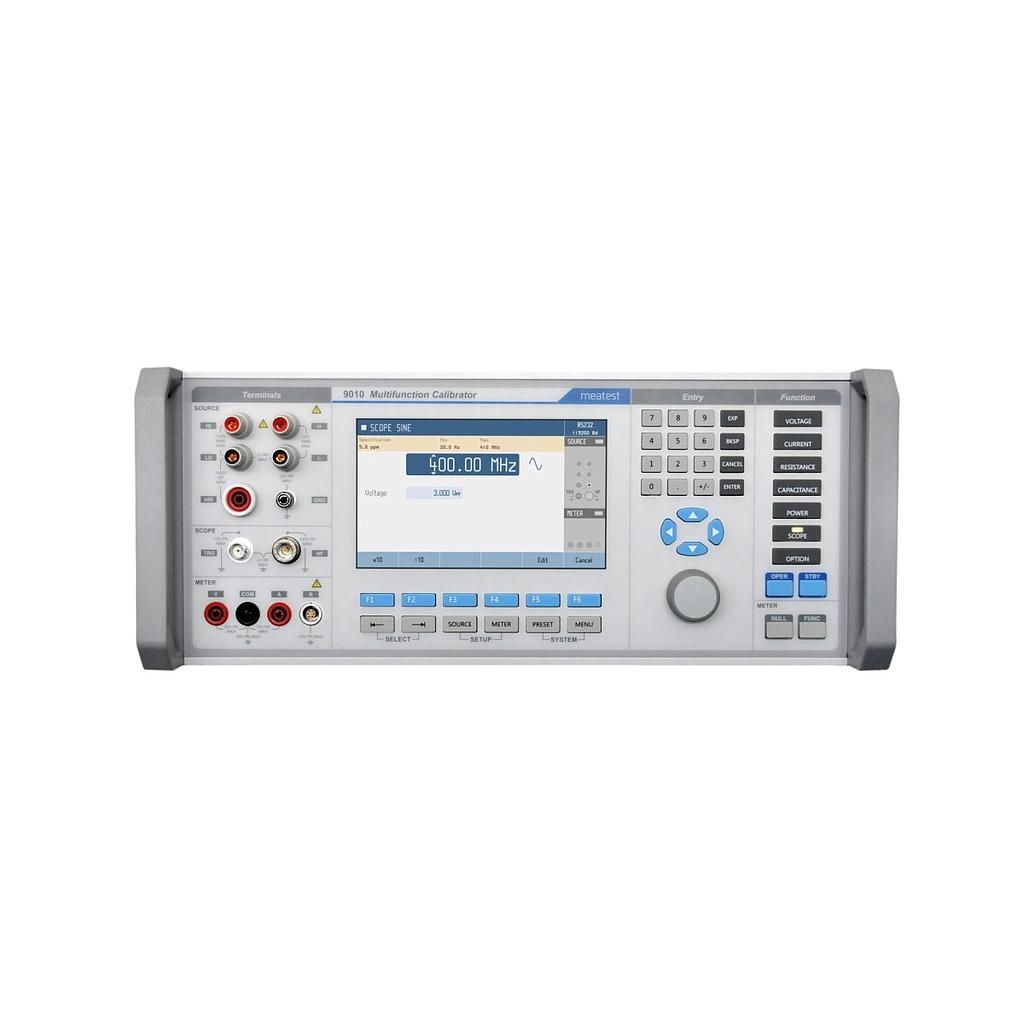

MEATEST 9010 Multifunction Calibrator

DC voltage: 0 - 1050 V

        ± 35 ppm / year

AC voltage: 1 mV - 1050 V, 15 Hz - 300 kHz

        sinusoidal & non-sinusoidal waveforms, harmonics

        ± 250 ppm / year

DC current: 0 - 20 A (1000 A with 140-50 Current Coil)

        ± 150 ppm / year

AC current: 10 uA - 20 A, 15 Hz - 10 kHz (1000 A with 140-50 Current Coil)

        sinusoidal & non-sinusoidal waveforms, harmonics

        ± 500 ppm / year

DC Power & Energy: 40 uW - 5.6 kW (280 kW with 140-50 Current Coil)

        ± 210 ppm / year

AC Power & Energy: 40 uW - 5.6 kW, 15 - 1000 Hz (280 kW with 140-50 Current Coil)

        50 harmonic products, voltage from current

        ± 730 ppm / year

Resistance: 0 Ω - 1 GΩ, resolution 6½ digits

        ± 15 ppm / year

Insulation Resistance: 100 kΩ - 100 GΩ

        rated up to 1.5 kV

Capacitance: 800 pF - 120 mF, resolution 6½ digits

        ± 0.5 % / year

Temperature: TC BCDEG2JKMNRST with cold junction compensation

        RTD ± 0.03°C / year

Frequency: 0.1 Hz - 400 MHz

        ± 25 ppm / year

Process Multimeter

DC voltage: 0 - 12 V

        mVDC resolution down to 10 nV

        ± 50 ppm / year

DC current: 0 - 24 mA

        ± 150 ppm / year

Resistance: 0 Ω - 20 kΩ, resolution 6½ digits

        ± 200 ppm / year

Temperature: TC BCDEG2JKMNRST

        RTD ± 0.08°C / year

Frequency: 1 Hz - 100 kHz

        ± 50 ppm / year

Accessories: Current Coil 140-50, Adapter 9000-60, Adapter 91
