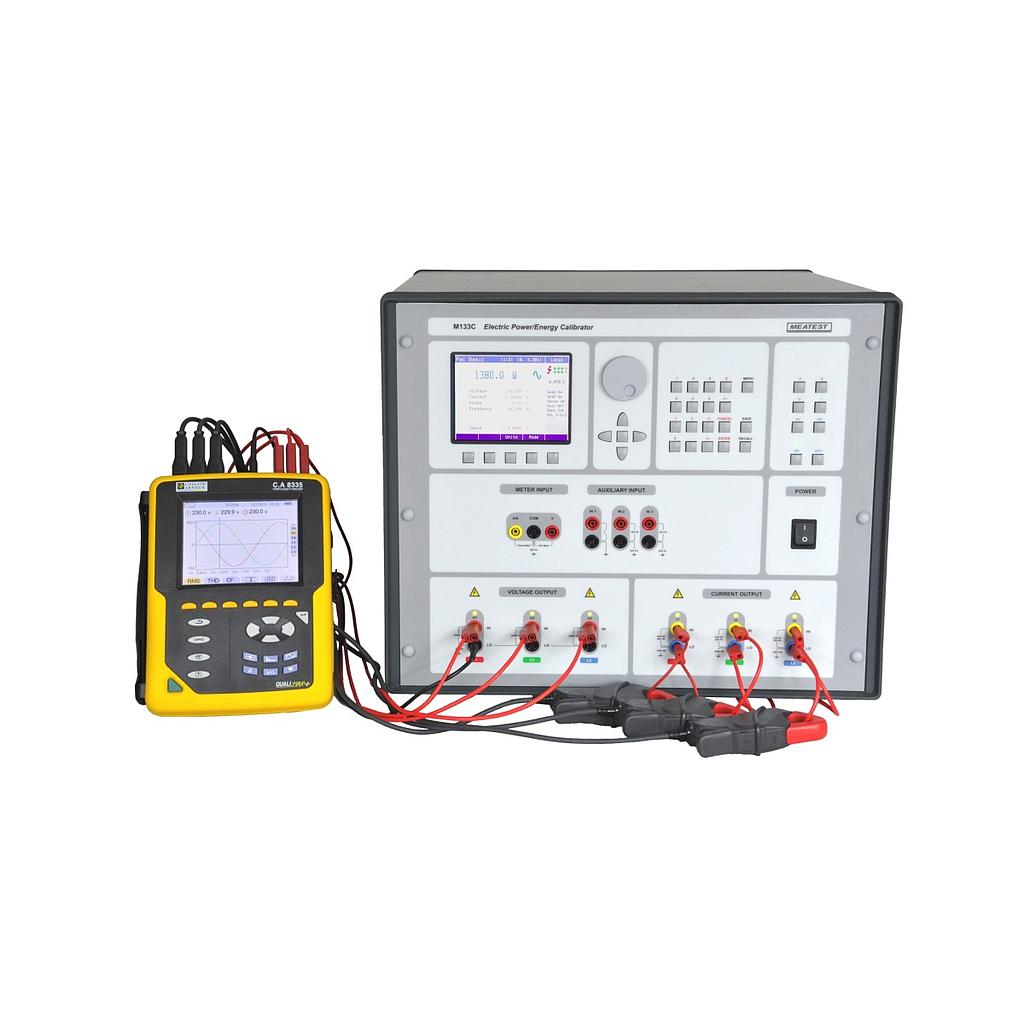

MEATEST M133C 3F Power & Energy Calibrator

DC voltage: 3x 1 - 280 V

        ± 150 ppm / year

AC voltage: 3x 1 - 600 V, 15 - 1000 Hz

        ± 150 ppm / year

DC current: 3x 5 mA - 30 A (2250 A with 151-25 Current Coil)

        ± 250 ppm / year

AC current: 3x 5 mA - 30 A, 15 - 1000 Hz (2250 A with 151-25 Current Coil)

± 250 ppm / year

DC Power & Energy: 3x 5 mW - 8.4 kW (3x 420 kW with 140-50 Current Coils)

0.1 s - 3 years

        ± 440 ppm / year

AC Power & Energy: 3x 5 mW - 18 kW, 15 - 1000 Hz (3x 900 kW with 140-50 Current Coils)

        0.1 s - 3 years, power factor -1 to +1

        Harmonic, interharmonic, modulation/flicker, dip/swell distrortion functions

        ± 440 ppm / year

Process Multimeter

DC voltage: 0 - 12 V

        ± 100 ppm / year

DC current: 0 - 25 mA

        ± 100 ppm / year

Frequency: 1 Hz - 15 kHz

        ± 50 ppm / year

Accessories: High Current Adapter 133-01, Current Coil 140-50, Current Coil 151-25, Adapter 110
