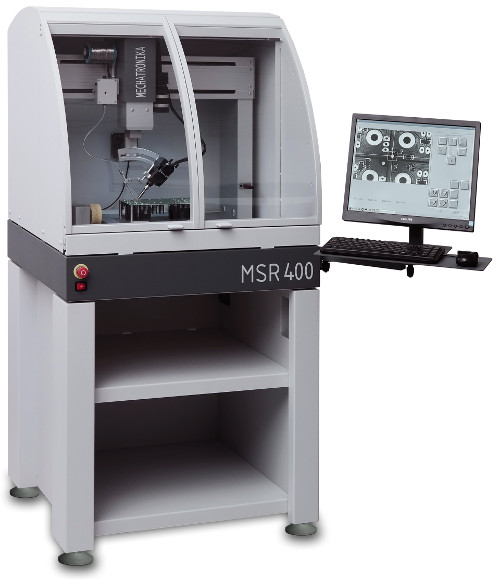

Soldering Iron: Power 200 W (other power on request), tip temperature 150 – 450 °C, stroke spring axis 10 mm, vertical angle 0 – 45°
Solder Feeder: Solder wire diameter 0.5 – 1 mm, feed speed 0 – 30 mm/s, solder wire detection
X/Y/Z/Θ Unit: X/Y travel 400 × 330 mm, Z travel 70 mm, theta rotation 315°, resolution 0.01 mm
Vision System: Vision guided teach-in system, automatic fiducial correction, automatic bad mark sensing
Control Panel: LCD 17’’ screen with keyboard and mouse
Options: Data import from GERBER CAD files, stand, jet cleaning systems
Dimensions & Weight: 750 × 700 × 1550 mm approx. 130 kg (on stand), 750 × 700 × 800 mm approx. 70 kg (bench-top)
Power Supply: 230 V, 50 Hz, 300 W
Compressed Air Supply: 0.6 MPa (for optional iron jet cleaning)
Programming In Teach-In Mode Using The Top Camera Or Import Gerber Cad Files
Automatic Recognition Of Fiducials And Bad Marks
Automatic Detection Of Pcb Top Surface Level
Soldering Tip Tension Sensor
Four Axes Soldering
Automatic Iron Brush Cleaning System (Optional Jet System)
Good Price To Performance Ratio
