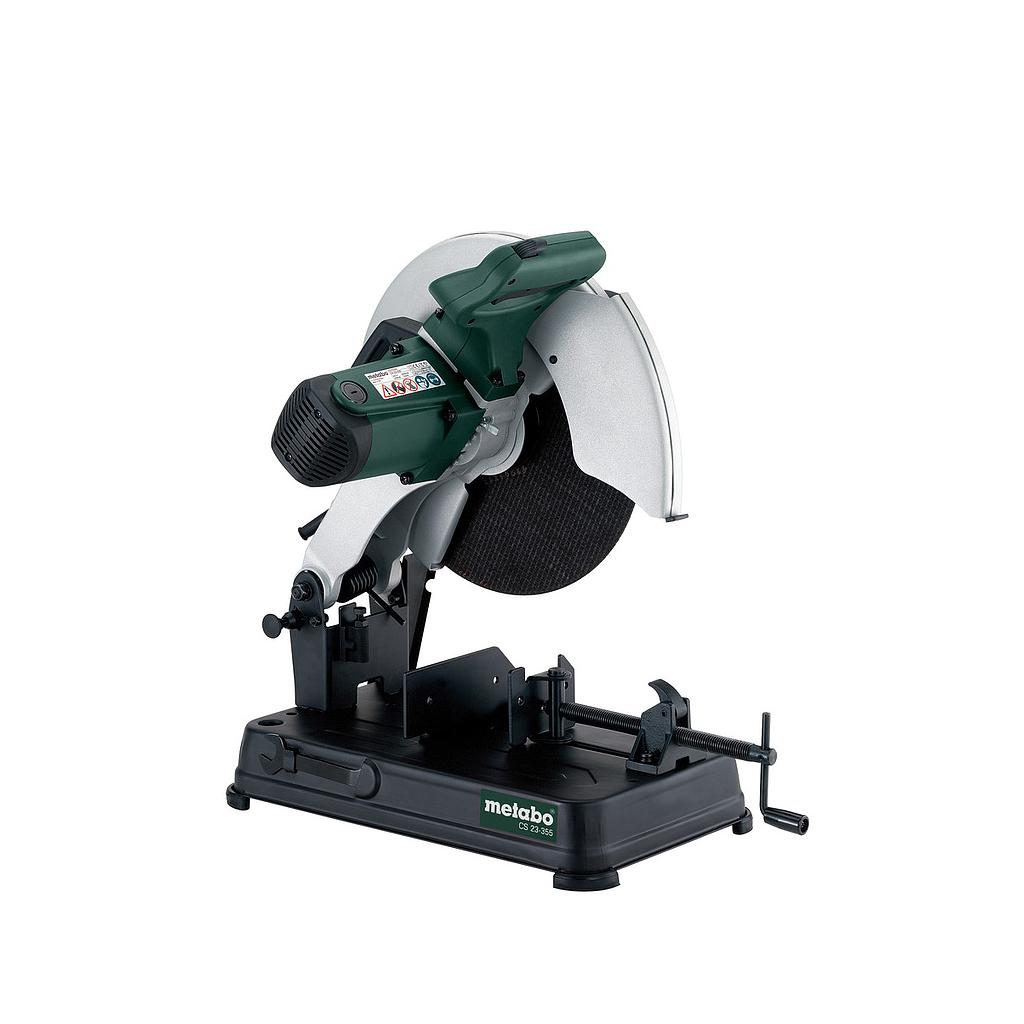

METABO CS 23-355 Metal chop saw (220-240 V / 50-60 Hz)
Manufacturer: METABO Model: CS 23-355 P/N: 602335000 Origin: China Guarantee: 12 Month - Request a Quotation
- Contact
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222)730.39.68
HCM city: (028) 38.119.636
Grinding wheels (Ø x bore): 355 x 25.4 mm / 14 x 1 "
Torque: 18 Nm / 160 in-lbs
No-load speed: 4000 rpm
Rated input power: 2300 W
Cutting capacity steel bars: 65 mm / 2 1/2 "
Cutting capacity pipes: 125 mm / 5 "
Cutting capacity steel sections: 115 x 130 mm / 4 1/2 x 5 1/8 "
Maximum opening of vice jaws: 238 mm / 9 3/8 "
Dimensions of the base plate: 468 x 282 mm / 18 7/16 x 11 3/32 "
Transport height: 400 mm / 15 3/4 "
Weight: 16.9 kg / 37 lbs
Cable length: 2.7 m / 9 ft
Noise emission
Sound pressure level: 91 dB(A)
Sound power level (LwA): 104 dB(A)
Uncertainty of measurement K: 3 dB(A)
Delivery
Open-ended ring spanner
Inner support flange
Flange nut
Datasheet
Features
For single phase alternating current
Powerful and fast cutting for profiles, pipes and rods made of steel, cast iron, aluminium and other non-ferrous metals.
Motor and gear with ball bearing for high loads
Spindle lock for easy disc change
Quick clamping device with variable mitre conversion from -15° up to 45°
Easy to transport due to built-in handle and locking device
High safety thanks to swivelling cutting guard
Storage for double-ended wrench at the machine table
Safe working thanks to adjustable spark guide plate
Adjustable cutting depth limiter
