Type of battery pack: LiHD
Battery voltage: 18 V
Battery pack capacity: 2 x 5.5 Ah
Support surface: 345 x 730 mm
Maximum cutting width 90°/45°: 305 / 205 mm // 12 / 8 1/16 "
Maximum cutting depth at 90°/45°: 65 / 36 mm // 2 9/16 / 1 13/32 "
Cutting capacity 90°/90°: 305 x 65 mm / 12 x 2 1/2 "
Cutting capacity 45°/45°: 205 x 36 mm / 8 1/16 x 1 13/32 "
Turntable setting left/right: 47 / 47 °
Saw blade tilt left/right: 47 / 2 °
Saw blade: 216 x 30 mm / 8 1/2 x 1.181 "
No-load speed: 4200 rpm
Max. cutting speed: 48 m/s / 157 ft/s
Weight (including battery pack): 13.8 kg / 30 lbs
Delivery
Carbide saw blade (40 teeth)
Material clamp
Tool for saw blade change
Chip Collection Bag
2 x LiHD battery packs (18 V/5.5 Ah)
Quick charger ASC 145 "AIR COOLED"
Charger ASC 145 "AIR COOLED"
2 x Table length extensions
Length Guide
Accessories
SAWING
Circular saw blades, Other accessories for semi-stationary/stationary circular saws, Further accessories for crosscut and mitre saws, Further accessories for band saws, Other accessories for semi-stationary/stationary saws
ACCESSORIES FOR CORDLESS MACHINES
Battery packs, Charger
OTHER ACCESSORIES
COccupational safety
Datasheet
Features

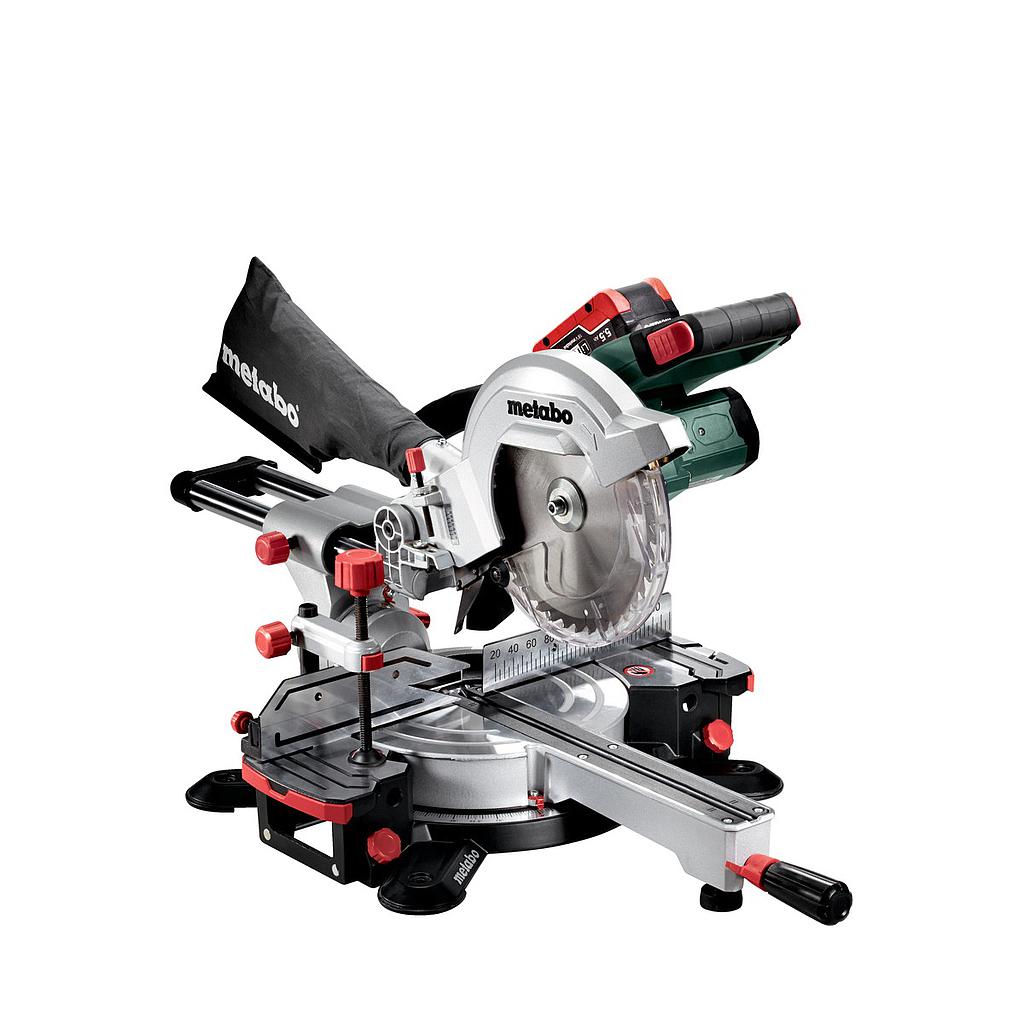

Powerful cordless mitre saw perfect for assembly jobs with high volume of cuts
Up to 400 cuts per battery pack charge (5.2 Ah) in 195 x 8 mm laminate
Up to 200 cuts per battery pack charge (5.2 Ah) in 60 x 60 mm soft wood
Sliding function for wide work pieces.
Compact light weight, suitable also for one-handed transport
Easy transport thanks to ergonomically-designed handles and saw head lock
Motor brake for quick stop of the saw blade in 3 seconds
Robust die-cast aluminium design for the highest demands
Effective internal chip and dust extraction via dust scoop and chip collection bag
Fast and precise setting of common angles using stop points
Cutting line laser and LED work light with energy-saving automatic shutoff
Adjustable and extendable table width extensions, removable to put long panels, slabs etc. underneath
Sliding high rear fence profiles for safe sawing
Material clamp for secure fixing of the work piece from the top or front
Depth guide for easy creation of grooves
Saw head can be inclined to the left, with additional angle range for undercuts
All scales and operating elements are visible from the working position and can be operated intuitively
Easy saw blade change by means of spindle lock: No dismantling of the pendulum guard required
LiHD battery pack for ultimate performance, extremely long runtime and service life
Battery packs with capacity display for checking the charge status
Ultra-M technology: highest performance, gentle charging and 3 years of warranty on the battery pack.
