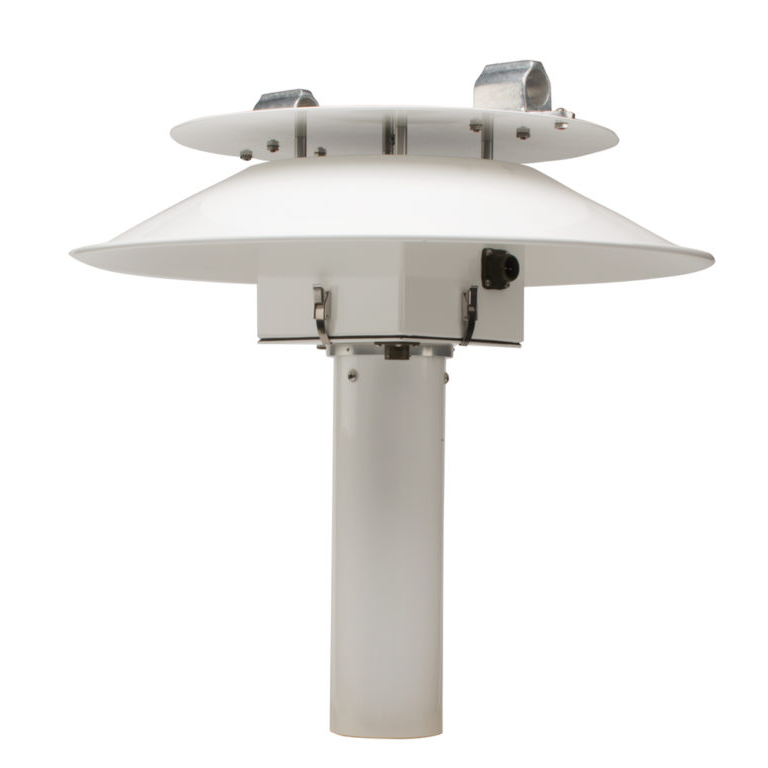

The 076B-4 Fan Aspirated Radiation Shield protects temperature and humidity sensors from direct and indirect radiant energy.
Operating Characteristics
Aspiration: Electric fan
Flow Rate:
1000ft/min scrubbing
500ft/min sample
Temperature Range:
Standard: -50~85°C (-67~ 185°F)
Optional: -50~100°C (-67~ 212°F)
Power Required: 12VDC; 250mA
Sensors
Maximum Number: Four
Models Numbers: 061/085/T-200A
Maximum Diameter: 0.75in (1.9cm)
Maximum Length: 10in (25cm)
Transducer Sensing Zone: 8in (20cm)
Physical Characteristics
Weight: 9.3lbs (4.2kg)
Dimensions (HxD): 20in(51cm)x20in (51cm)
Cable & Mounting
Signal: PN 2144 Cable Assembly; specify length in feet or meters
AC Power: PN 1954 Cable Assembly; specify length in feet or meters
DC Power: PN 2423 Cable Assembly; specify length in feet or meters
Mounting: Mounts to 3/4 in. IPS horizontal pipe
