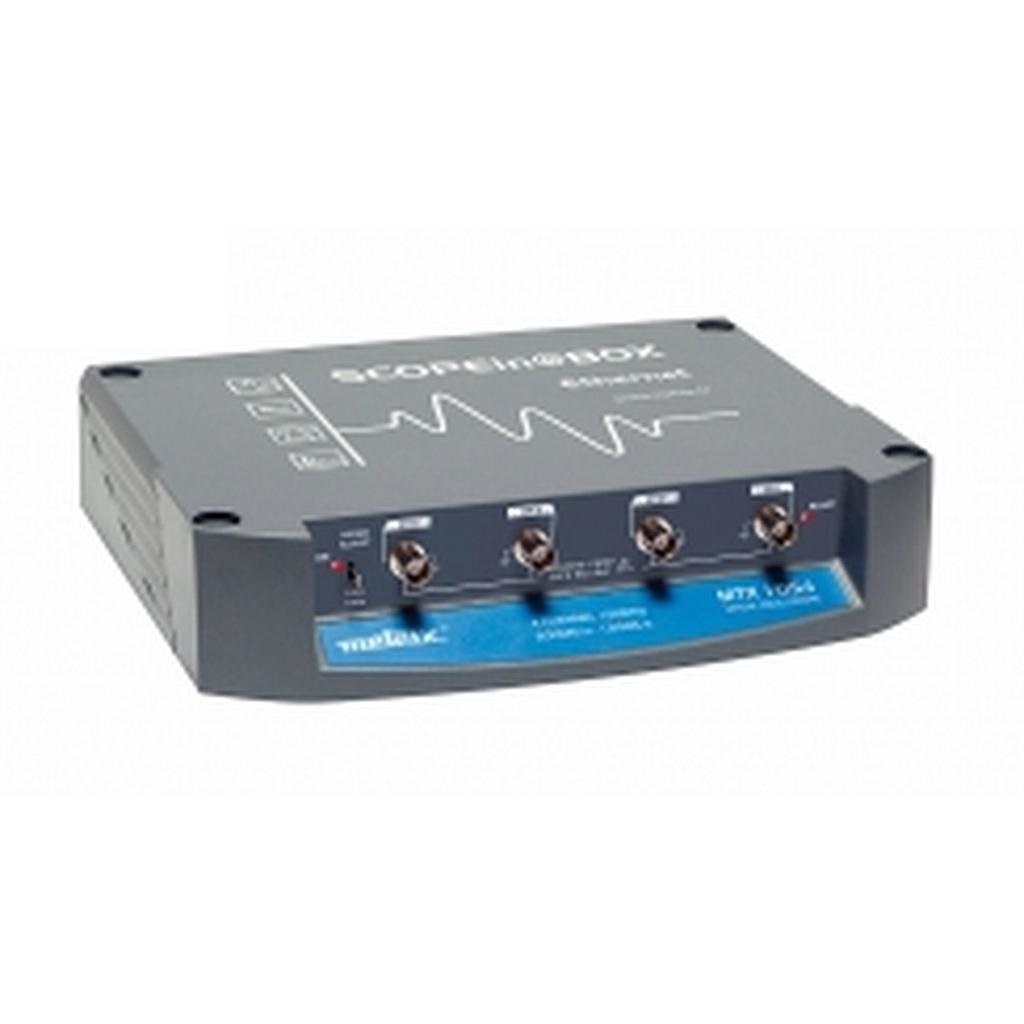

MAN-MACHINE INTERFACE
+ Display: Colour PC screen display / 8 x 10 div / Multi-windowing with up to 4 curves on screen / "Windows-like" interface & online help
OSCILLOSCOPE MODE
- Vertical deflection
+ Bandwidth: 200 MHz
+ Number of channels: 4 channels, class 1, common chassis earths
+ Vertical sensitivity: 2.5 mV – 100 V/div, up to 250 μV/div with vertical expansion
- Horizontal deflection
+ Sweep speed: 35 calibres from 1 ns to 200 s/div
- Triggering
+ Mode: Auto, Triggered, One-shot ROLL, auto-level at 50 %
+ Sources: CH1 ... CH4, mains
+ Type: Edge, Pulse Width or Delay (40 ns-10.5 s), counting (2 - 16,384 events), TV (525 = NTSC, 625 = PAL/SECAM), Adjustable pretriggering from 0 to 100 %, Hold-off (40 ns-10.5 s)
- Digital memory
+ Maximum sampling rate: Repetitive = 100GS/s ; One-shot = 100 MS/s per channel
+ Vertical resolution: 10 bits (9 bits used)
+ Memory capacity: Depth = 50,000 points – storage capacity depends on PC configuration
- SPO (Smart Persistence Oscilloscope)
+ Persistence duration: 100 ms, 200 ms, 500 ms, 1 s, 2 s, 5 s, 10 s and infinite
+ Performance: Acquisition rate: 50 kwaveforms/s/channel, No. of samples acquired: 19 MS/s/channel
- Measurement processing
+ FFT analyser & MATH functions: FFT, +, -, x, / - "Made-to-measure"function editor
+ Manual cursors: dv, dt, 1/dt, phase – cursors linked to trace or free
+ Automatic measurements: 2 or 19 measurements chosen among 19 + Automatic phase – On any type of curve - Markers and limits
RECORDER MODE
+ Duration / Sampling: 2 s to 31 days / Sampling interval: 40 μs to 53.57 s
HARMONIC ANALYSER
+ Analysis range: Fundamental from 40 Hz to 1 kHz + 31 orders on 1 to 4 channels
+ Processing: Total RMS value, THD and selected order (%F, phase, frequency, VRMS)
GENERAL SPECIFICATIONS
+ Memory & printing: "Unlimited"but depending on PC configuration / Via "Windows"environment
+ Communication: USB, local or remote 10 Mb Ethernet*, WiFi*
+ Power supply: 100 to 240 Vac / 47-63 Hz – removable mains power cable
+ Electrical safety: IEC 61010-1 / CAT II 300 V – EMC according to EN 61326-1
+ Casing / Environment: 270 x 213 x 63 mm – 1.8 kg or 19"/3U / Storage -20 °C to +60 °C - operation 0°C to 40 °C
