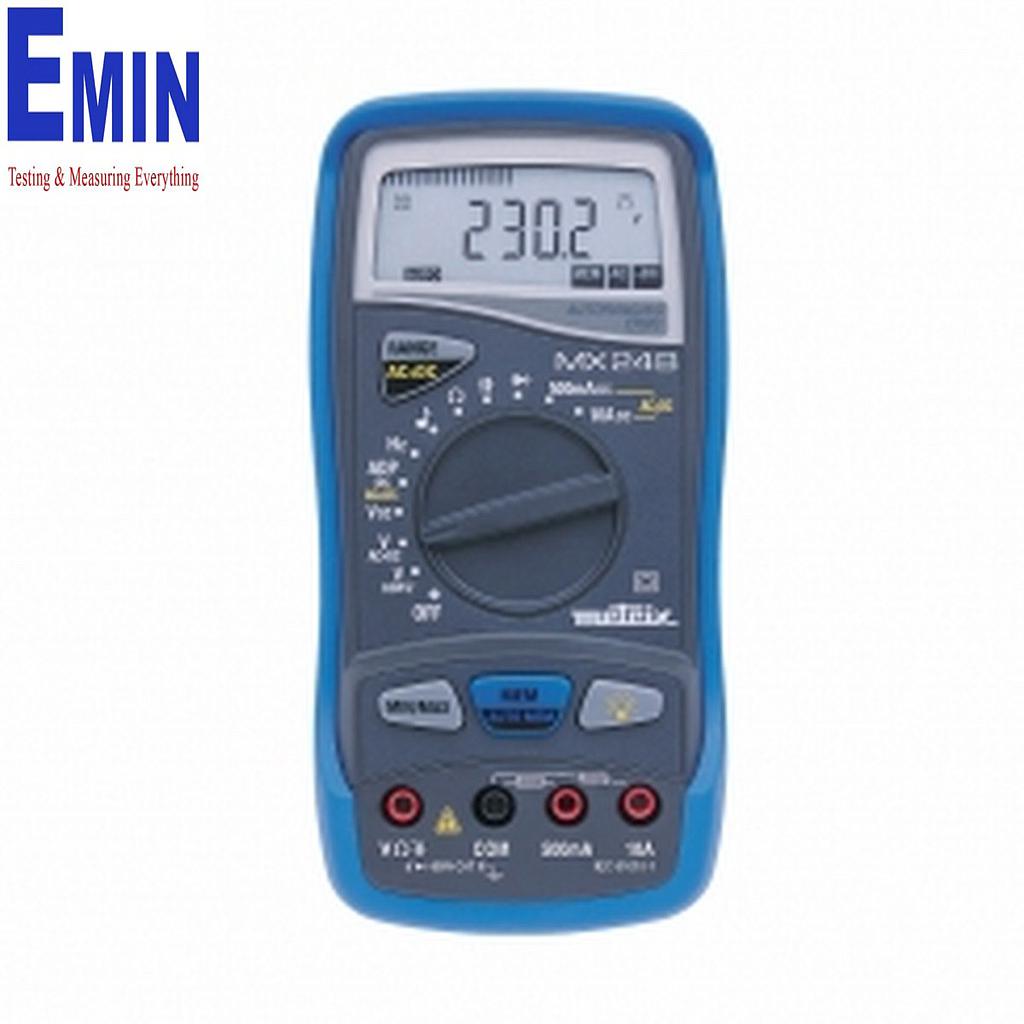

Manuafacturer: Metrix
Model : MX 24
Item: MX0024-CG
Warranty : 12 month
Technical specifications
- Display resolution (counts) 5,000 / 50,000
- Measurements : TRMS AC+DC
- 20 meas./s fast bargraph:
- Backlighting / Auto-shutdown: có/ có
- Bandwidth: 1 kHz
- Auto / manual ranges:yes/ yes
MEASUREMENTS AVAILABLE
- DC voltage (ranges): 500.0 mV to 1,000 V
- DC voltage basic accuracy:0.3 % R + 2 D
- AC or AC + DC voltage (ranges): 500.0 mV to 750 V
- AC or AC+DC voltage basic accuracy: 1.5 % R + 2 D
- DC/ AC+DC current (ranges): 50.00 mA - 20.00 A
- DC current basic accuracy: 0.3 % L + 2 D
- AC or AC+DC current basic accuracy: 1.5 % L + 2 D
- Resistance (ranges / accuracy): 500.0 Ω to 50.00 MΩ / 0.3 % + 3 D
- Fast continuity test with buzzer : < 10-20 Ω / 10 ms
- Diode test: yes
- Frequency (ranges / accuracy): 5.0000 Hz to 500.00 kHz / 0.03 % + 2 D (5,000 or 50,000 counts)
- Capacitance (ranges / accuracy): 50.00 nF to 50.00 mF / 1 % R + 4 D
- Low-impedance measurements (V LowZ): 5.000 V to 750 V (AC+DC)
MEASUREMENT PROCESSING
- Hold / Auto-Hold display functions: yes
- Min / Max / Avg / Pk monitoring
SAFETY AND RELIABILITY
- IEC 61010-1, 2001: 600 V CAT III
- Batteries / fuses: Separate compartments - protected access and fuse test system
- “Closed-casing” soft calibration: yes
GENERAL SPECIFICATIONS
- Power supply: 9 V battery
- Battery life: 250h
- Dimensions (H x L x W) / weight: 170 x 80 x 35 mm / 285 g with battery
State of delivery: An elastomer sheath, a set of 2 safety leads, 9 V battery installed
Accessories:
- Sheath with stand for MX 24 AE0237
- Carrying case (110 x 240 x 50 mm) HX0018
- Carrying bag (185 x 270 x 60 mm) AE0190
- Hard case with Metrix® logo (270 x 195 x 65 mm) HX0009
- Infrared temperature probe -30 °C to +550 °C (1 mV/°C) P01651610Z
- CMS clamp (banana lead) HX0064
- USB/RS232 PC accessory for MX 26 HX0055
