Accuracy: ± (10 % of the reading + 10 mbar)
IP Rating: IP 67

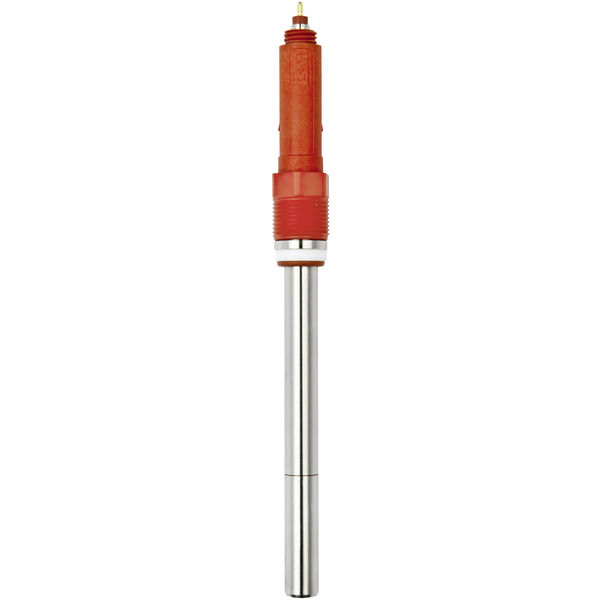

Model Family: InPro 5000i
CIP resistant: Yes
Response Time: T90 = < 120 s Air to CO2 @ 25°C
Sensor Length: 220 mm
Cable Connector: K8S
Design Pressure: 44 psig (3 bar)
O-Ring Material: Viton®, Silicone
Sensor Diameter: 12mm
Connector Design: Straight
Process Connection: Pg 13.5
Operating Range CO2: 10 mbar – 1,000 mbar
Measurement Parameter: Carbon Dioxide
Measuring Temp. Range: 32 °F – 140 °F (0 °C – 60 °C)
Measurement Technology: Potentiometric Severinghaus
Mechanical Temp. Range: 32 °F – 275 °F (0 °C – 135 °C)
ISM (Digital) or Analog: ISM (Digital)
Certificates & Approvals: Quality certificate, Material certificate 3.1, Surface finish certificate, FDA/USP Class IV
Operating Pressure (Bar): 0.200 bar–2.000 bar
Operating Pressure (PSI): 2.9 psi – 30 psi
Wetted Metallic Material: 316L stainless steel
Wetted membrane material: PTFE
Autoclavable/Sterilizable: Yes
Primary Media/Application: Pharmaceutical/Life Science Production
Measured Pressure Resistance: 0.2 bar – 2 bar
Measurement Range: Concentration: 10–1000 mbar pCO2
Measurement Range (Concentration): 0.145-14.5 psig pCO2
Hygienic/Biocompatibility Approvals: EHEDG EL Class 1, USP ClassVI/FDA/USP Class 7
Surface Roughnes of Wetted Material: N5/Ra16 (Ra=0.4μm/16μin)
Intelligent Sensor Management (ISM®): Yes
