Accuracy: ± 2% of reading or 2ppb, whichever is greater
Sample Rate: Adjustable between 1 and 60 seconds

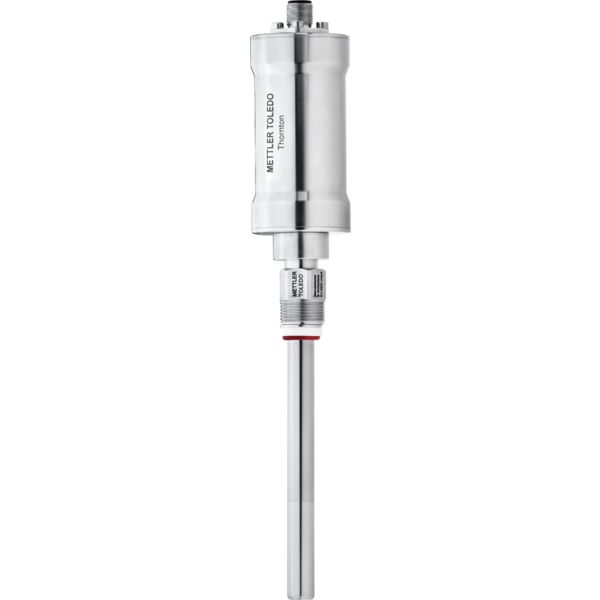

Model Family: UPW DO sensors
Response Time: 98% of final value in <20s
Sensor Length: 120 mm
Cable Connector: 5-pin
O-Ring Material: EPDM (FDA-positive listed)
Sensor Diameter: 12 mm
Connector Design: Straight
Wetted Materials: Stainless steel, silicone, EPDM O-ring
Measurement Range: 0-5000 ppb
Membrane Material: Silicone
Other certificates: CE
Process Connection: ¼" NPT(F)
Measurement Parameter: Oxygen
Measurement Technology: Optical fluorescence quenching
ISM (Digital) or Analog: ISM (Digital)
Hazardous Area Approvals: No
Operating Pressure (Bar): 0.2 - 12 bar
Operating Pressure (PSI): 2.9 - 174 psi absolute
Temperature compensation: Automatic
Autoclavable/Sterilizable: No
Primary Media/Application: Power Plant Water/Steam Semiconductor Water
Operating Temperature (Celsius): 0 to 121°C
Operating Temperature (Fahrenheit): 32 to 250°F
Hygienic/Biocompatibility Approvals: No
Mechanical Pressure Resistance (Bar): Maximum 12 bar
Mechanical Pressure Resistance (PSI): 2.9 - 174 psi absolute
Measuring Temperature Range (Celsius): 0 - 50 °C
Measuring Temperature Range (Fahrenheit): 32 - 122 °F
