Measuring range(mm): XYZ: 500x600x360
External dimensions(mm):
Machine size: 1250x1550x2100
Computer desk size: 800x600x750
Mainframe weight(kg): 470
Indication error(um): 3.5＋L/200
Maximum load(kg): 50-80
Moving speed (MM/S): 100-300
Temperature (℃): 10-40
Grating ruler(standard): 0.5um
Acceptance method: Step Gauge
Overview:

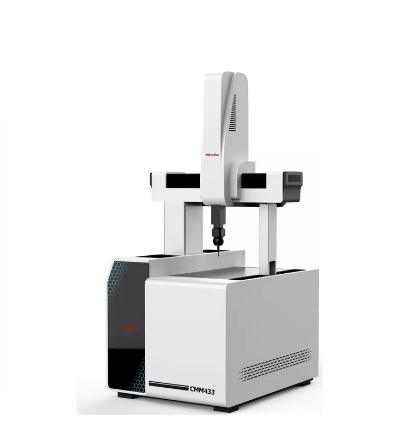

MINI series high-speed online measuring machine has the characteristics of wide temperature range, powerful measurement function, stable performance, high accuracy, easy operation, fast measurement speed, simple and convenient maintenance, and fast transportation and installation. It adopts ultra high precision linear guide transmission technology, uses high rigidity screw and belt transmission methods, and has a temperature compensation system. It is a high-speed and efficient contact type rapid measuring machine without air source, especially suitable for use in small spaces, workshops, and automated production line units. It can also be used as an independent dedicated rapid comparison and testing machine.
DMIS universal, various modular software functions (intelligent measurement of electrodes and molds, rapid comparison of three coordinates, standard DMIS functions, standard CAD functions, support for various production systems such as MES, Q-DAS, etc.)
Technical functions:
Ultra wide temperature range, capable of working in an environment of 10-40 ° C
No gas source design, can be used with power on
High speed measurement, designed with ultra-high acceleration, the acceleration is 2-3 times that of ordinary machines
Easy and fast establishment of coordinate system, achieving fast and efficient measurement
Automatically import numerical models and quickly generate measurement paths and programs (electrode module function)
Customizable development of functional modules
Dustproof and shockproof design, convenient for use on production sites
Support automated interfaces to achieve intelligent online measurement
Longmen mobile mode, convenient for automated feeding and production line layout, one machine for multiple purposes
Integrated design, occupying small space and saving production line space
Convenient to move, you can easily move to any position with just a car
Humanized software development, drag and drop operation, supporting workshop online automation software
Match QC Start quality management analysis software for quality control
