Initial test force: 10kgf (98.07N)
Total test force: 60kgf (588.4N), 100kgf (980.7N), 150kgf (1471N)
Indenter specification: Diamond Rockwell indenter, ф1.588mm ball indenter
Test force application: Automatic（loading/dwelling/unloading）
Hardness reading: Readout through dial
Measure scales: HRA, HRB , HRC
Resolution: 0.5HR
Dwell time: 2~60s
Max.height of sample: 400mm
Distance from the indenter to the inner machine wall: 165mm
Power supply: AC220V，50Hz
Executive standards: GB/T 230.2
Overall dimensions: 548*326*1025mm
Net weight: 140kg
Standard configuration：
Main machine: 1 sets
Diamond indenter: 1pcs
ф1.588mm ball indenter: 1 pcs
Big flat workbench、small flat workbench 、V-shape workbench: 1pc ea.
Standard hardness block 60~70 HRC: 1 pcs
Standard hardness block 20~30 HRC: 1 pcs
Standard hardness block 40~50 HRC: 1 pcs
Standard hardness block 80~100 HRB: 1 pcs
Standard hardness block 80~88HRA: 1 pcs
Standard weight A, B, C: 1 pcs ea.
Fuse: 2 pcs
Power cord: 1 pcs
Level: 1 pcs
Horizontal adjusting screw: 4 pcs
Screwdriver: 1 pcs
Dust cover: 1 pcs
Product manual: 1 share
Product certification: 1 share
Product feature:
Hardness is one of the important indexes of mechanical properties of materials, and hardness test is an important means to judge the quality of metal materials or parts. Since the hardness of metals corresponds to other mechanical properties, most metal materials can be approximated by measuring hardness to calculate other mechanical properties, such as strength, fatigue, creep and wear.

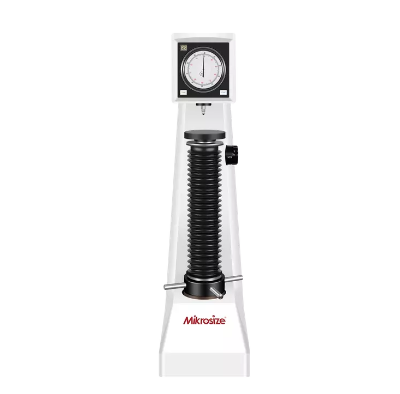

The electric Rockwell hardness tester adopts the automatic loading and unloading test force mechanism, the test force transformation is obtained by the rotation of the variable load hand wheel, the operation is simple and rapid, in addition to the dial to zero, there is no artificial operating error, with high sensitivity and stability, suitable for the hardness determination of carbide, carburized copper, hardened copper, hard cast iron and aluminum alloy, copper alloy and malleable cast iron.
Application：
Suitable for quenching, quenching and tempering, annealing, chilled castings, malleable castings, hard alloy steel, aluminum alloy, copper alloy, bearing steel and other hardness determination.
