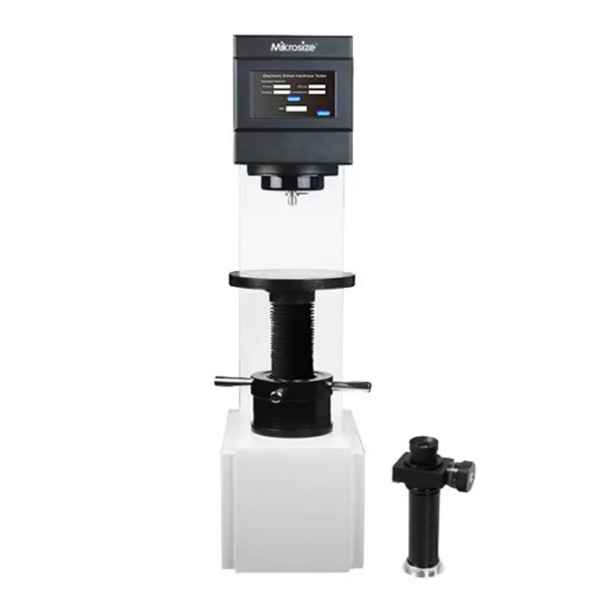

Mikrosize uBrin-3000E Electronic Touch Screen Brinell Hardness Tester (3000kgf, 29420N; 0,5%)

Data Display&Output: LCD touch screen

Test Force

Kg: 62.5kgf, 100kgf, 125kgf, 187.5kgf,250kgf, 500kgf, 750kgf, 1000kgf, 1500kgf, 3000kgf

N: 612.9N, 980.7N, 1226N, 1839N,2452N, 4903N, 7355N, 9807N,14710N, 29420N

Brinell Scale: HBW2.5/62.5, HBW2.5/187.5, HBW5/62.5, HBW5/125, HBW5/250, HBW5/750, HBW10/100, HBW10/1500, HBW10/3000, HBW10/250,HBW10/500, HBW10/1000

Test force accuracy: 62.5 ~ 250Kgf≤1% ; 500 ~ 3000Kgf≤0.5%

Reading Microscope

Resolution :0.01 mm (The minimum reading of microdrum)

Magnification: 20x

Ball Diameter (mm): Φ2.5mm/Φ5mm/Φ10mm

Test SpaceTest Height: 230mm     Test Height:155mm

Executive Standards: BSEN 6506, ISO 6506, ASTM E10, GB/T231

Loading Method: Automatic (Loading/Dwell/Unloading)

Dwell Time: 1-99S (1 second / step)

Hardness resolution: 0.1 HBW

Hardness Test range: 3.18-653HBW

Test space: 230*155mm (Height x Depth)

Power supply: AC220V+5%，50-60Hz

Dimension: Machine: 540*190*750mm; Package: 730*450*980mm

Weight: Net weight: 100kg; Gross weight: 130kg

Standard Accessories

BRM-3 Reading microscope with light Source: 1 pc

Φ200mm test anvil: 1 pc

Brinell Ball Indentor Φ2.5mm: 1 pc

Φ60mm test anvil: 1 pc

Brinell Ball Indentor Φ5mm: 1 pc

Φ80mm V-shaped test anvil: 1 pc

Brinell Ball Indentor Φ10mm: 1 pc

Product qualification certificate: 1 Copy

Brinell Hardness Block HBW10/3000: 1 pc

Warranty card: 1 Copy

Brinell Hardness Block HBW10/1000: 1 pc

Instruction manual: 1 Copy

Brinell Hardness Block HBW2.5/187.5: 1 pc

Power cord/ Dust proof cover: Each 1 pc

uVision-PB Portable Automatic Brinell Hardness Measurement System(without computer)( uBrin-3000EV): 1 pc

Touch screen pen / Fuses 2A: 1 pc
