X.Y-axis Travel Distance(mm): 200X100
Z-axis Travel Distance(mm): 200
Dimensions（mm）: 600X500X920
Net Weight(KG): 120
X,Y-axis Accuracy: 2.5+L/100μm
Z-axis: Auto Focus
Loading Weight of Working Stage: 25kg
Image Sensor: TEO 1/3’’Colorful CCD Camera
Objective Lens: Manual Position Zoom Lens
Video Total Magnification: Optic Zoom Lens:0.7~4.5x, Objective Lens:20~148x
Resolution: 0.5 μm
Working Distance(Standard): 92 mm
Object View: 8.1mm～1.3mm
Movement System: X,Y-axis:Polish Rod, Z-axis:T-type Screw Rod,Servomotor
Data Processor: RS-100
Illumination: Surface:8-division LED Cold Light / Contour:Adjustable 256-grades LED Cold illumination
Measuring Software: Microsize
Working Environment
Temperature: 20℃±2℃, Temperature Variation<2℃/hr,Humidity:30~80%
Vibration: <0.002g,15Hz
Power Source: AC 100~220V, 50/60HZ, 10A

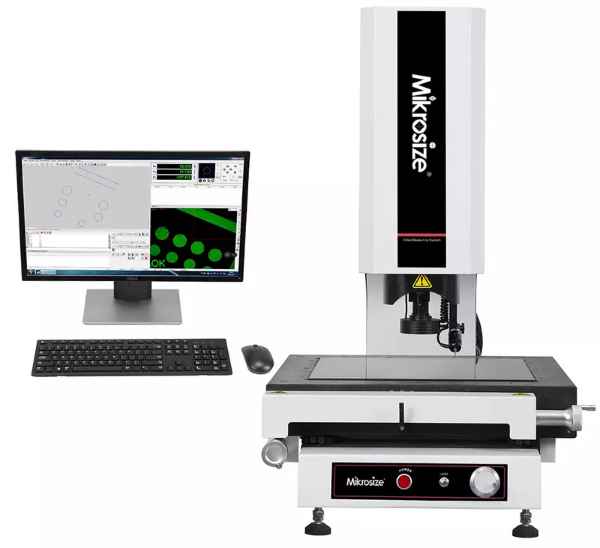

VMA-F Semi-auto Video Measuring System Packing List:
Mainframe/Dell PC System
Zoom Lens0.7X—4.5X
LED Light Source
RS-100 Data Processor
1/3" CCD Camera
Measuring Software
Linear Scale/Z- axis Servomotor System
Calibration Block/Capture Card
Instruction Manual/Anti-dust Cover
Z axis High Precision Linear Guide Rail
100mm Length Block(3D)
Renihshaw Probe(3D)
