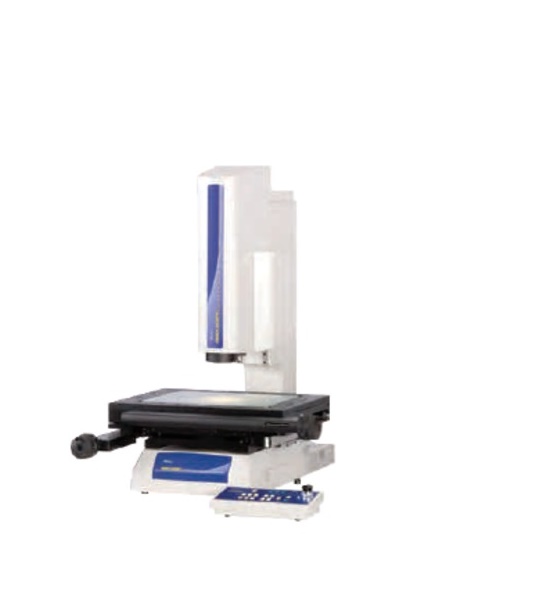

Drive method: X axis/Y axis/Z axis : Manual
Optical Magnification: Zoom: 0.75X-5.25X (in 8steps)
Measuring range (X×Y×Z): 8"× 4"× 6" (200×100×150mm)
Resolution/Length standard: 0.1μm/Linear encoder
Image detecting unit: 1/2" Color CMOS camera
Indication accuracy
X, Y (2.5+20L/1000)µm
Z (5.0+40L/1000)µm
Operating temperature range: 20±1°C
Stage glass size: 10"× 6" (250×150mm)
Maximum stage loading: 22 lbs (10kg)
Illumination:
Stage light: 12V/50W Halogen
Co-axial light: 12V50W Halogen
Ring fiber light: 12V/100W Halogen
Main Unit:
Dimensions (W×D×H)mm: 25"× 30"× 28" (624×769×722mm)
Mass: 160 lbs (72kg)
Power Unit:
Dimensions (W×D×H)mm:12"× 13"× 4" (310×330×102.5mm)
Mass: 11 lbs (5kg)
Power consumption: 160W at max
Accessory option:
• Rotary table: Rotary table with fine-feed knob (A) (176-305)
• Swivel center support (172-197)
• Holder with clamp (176-107)
• V-block with clamp (172-378)
