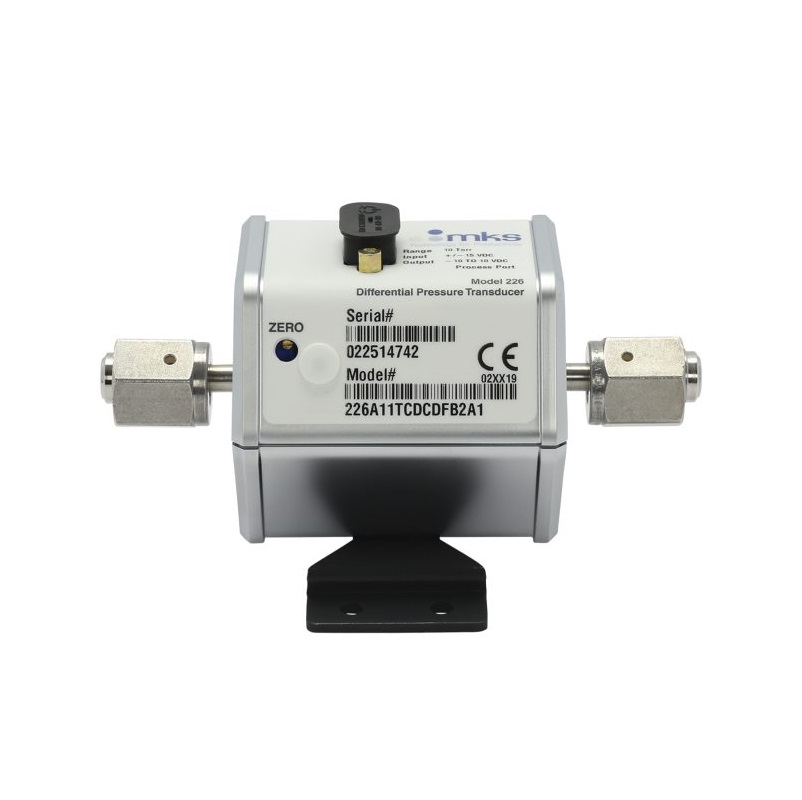

Measurement Type: Differential
Full Scale Range: 10 Torr
Analog Output: 0-5 VDC
Calibration: Unidirectional
Electrical Connector: 9-pin D-sub
Resolution: 0.01% of Full Scale
Accuracy: 0.50% of Full Scale
Zero Temperature Coefficient: 0.1% Full Scale/°C for standard accuracy specification
Span Temperature Coefficient: 0.04% of Reading/°C
Sensor Internal Volume: Measurement Side: 1.4 cm3
Reference Side: 9.0 cm3
Operating Temperature Range: 0-50°C
Maximum Overpressure: Measurement Side: 120% of Full Scale or 20 psi (140 kPa), whichever is higher
Reference Side: 120% of Full Scale
Maximum Line Pressure: 40 psig (275 kPa)
Exposed Materials: Measurement Side: Inconel
Reference Side: Inconel, ceramic, palladium, stainless steel, glass
Measurement Side Fitting: 4 VCR female
Reference Side Fitting: 4 VCR female
Mounting Bracket: Standard
Trip Points: 1
Power Requirements: 24 VDC
Compliance: CE, SEMI S2-0706
For specific range please check the attachment below!
