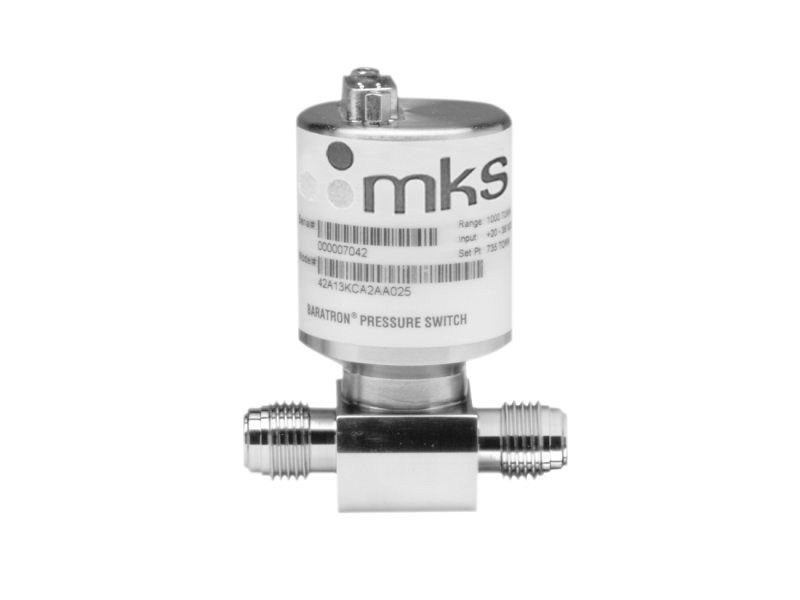

Specifications
Full Scale Pressure Ranges: 10 Torr through 500 psi (Consult Applications Engineering on Full Scale ranges in other engineering units. Selection of trip point and Full Scale range should be as close as possible as trip point accuracy is affected by the Full Scale range)
Trip Point Range: 5% to 100% of Full Scale
Accuracy: ±0.5% of Full Scale (±temperature coefficient)
Temperature Coefficient: ±0.07% of Full Scale/°C
Ambient Operating Temperature: 0° to 50°C
Trip Point Dead Band: ±3% of Full Scale (nominal)
Response Time: <20 msec
Materials Exposed to Process Gases: Inconel and 316L S.S.
10 µRa max. on switches with Swagelok® VCR® fittings (5 µRa max. optional)
Internal Volume: 3.3 cc for single-ended, 6.6 cc for flow-through
Overpressure: 2 × Full Scale or 45 psia, whichever is greater
Outputs
Electromechanical relay: SPDT (isolated) contacts rated up to 1 Amp @ 30 VDC resistive. Relay is
energized either with increasing pressure or decreasing pressure.
Input Power Required: 10 to 20 VDC @ 35 mA max. or 20 to 30 VDC @ 30 mA max.
Fittings: 4 VCR® male
Compliance: CE, UL recognized* (cULus E520864), EN/IEC CB Approved to all National Deviations
*standard MKS part numbers only
For details please check the attachment below!
