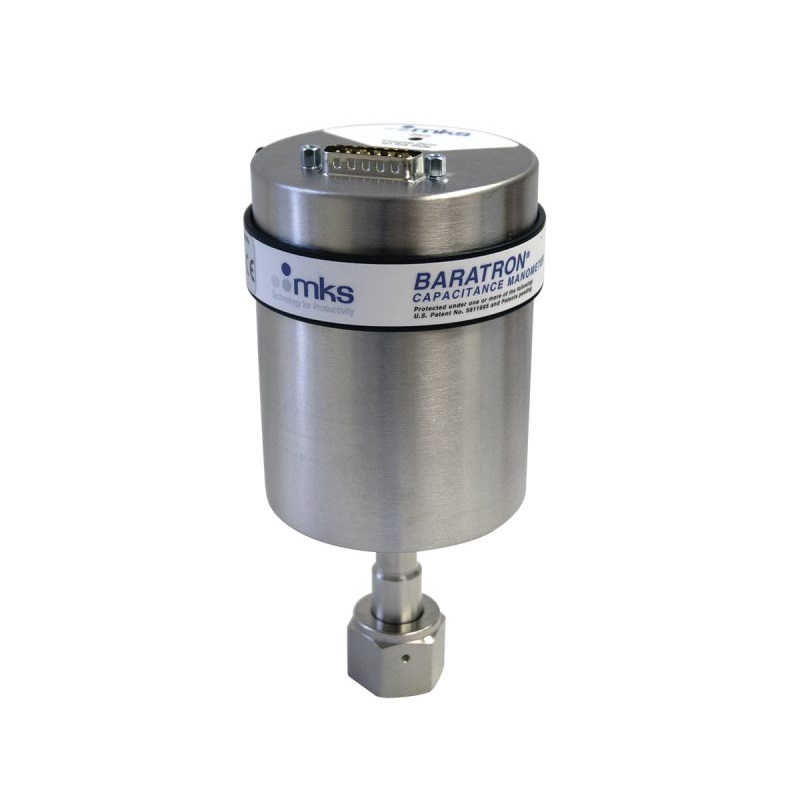

MKS 628H Heated Absolute Baratron® Capacitance Manometer (0.1 Torr; 8 VCR-F; Vertical Calibration)
Manufacturer: MKS Model: 628H P/N: 628H.1TBF2B - Contact
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222)730.39.68
HCM city: (028) 38.119.636
Measurement Type: Absolute
Sensor Temperature: 100°C
Full Scale Range: 0.1 Torr
Accuracy: 0.50% of Reading
Resolution: 0.001% of Full Scale
Fitting Type: 8 VCR female
Analog Output: 0-10 VDC
Analog Connector: 15-pin D-sub with Thread Locks
Calibration: Vertical
Zero Temperature Coefficient: 0.01% of Full Scale/°C
Span Temperature Coefficient: 0.02% of Reading/°C
Operating Temperature Range: 15-50°C
Volume: 6.3 cc
Warm-up Time: 4 hours
Overpressure Limit: 45 psia (310 kPa) or 120% of Full Scale, whichever is greater
Exposed Materials: Inconel
Power Requirements: ±15 VDC ±5% @ 0.60 Amps (max.)
Indicators: Heater Status LED
Compliance: CE
For specific range please check the attachment below!
