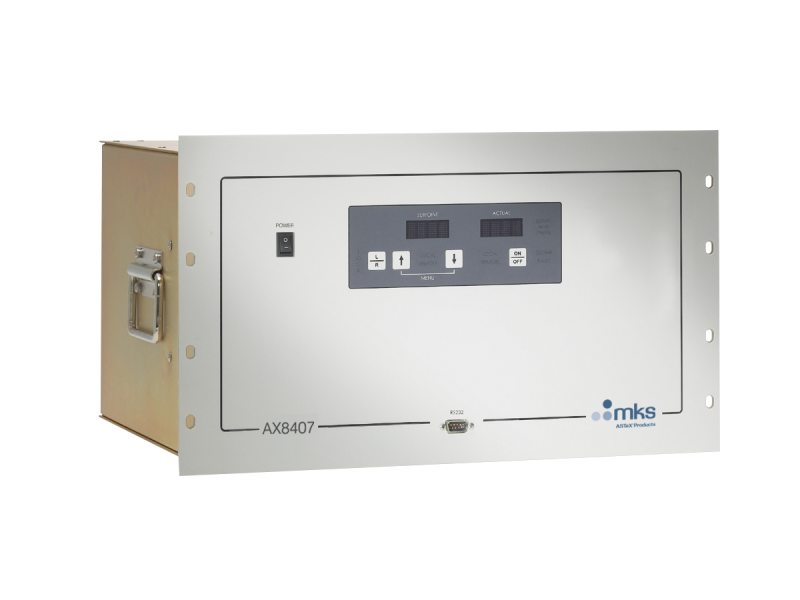

MKS AX8407 SEMOZON® High-concentration, High Flow Ozone Generator (5 - 40 slm)
Manufacturer: MKS Model: AX8407 - Contact
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222)730.39.68
HCM city: (028) 38.119.636
Ozone Output: up to 335 g/Nm3
Flow Rate: 5 - 40 slm
Feed Gas: Oxygen: Grade 6 or better O2
Nitrogen: 100 - 1000 ppm grade 5 or better N2
Nominal Cell Pressure (Delivery): 15 - 45 psig (100 - 310 kPa)
Pressure: 20 - 30 psig
Control Interface: Front Panel Control and Remote Operation
Cooling Water Temperature: 5 - 25°C (41 - 77°F)
Cooling Water Filtration: 100 microns
Cooling Water Quality: Resistivity ≥50 KΩ/cm
Minimum Water Flow: 7.6 lpm (2.0 gpm) minimum
Voltage Requirements: 208 VAC (±10%) 3 Ø & Ground, no Neutral
Current Requirements: 15 Amps
Frequency: 50/60 Hz
Weight: 59 kg (130 Lb)
Dimensions : 483 x 445 x 267 mm (19.0 x 17.5 x 10.5 in) (width x depth x height)
Compliance: CE, UL/CSA and SEMI F47
